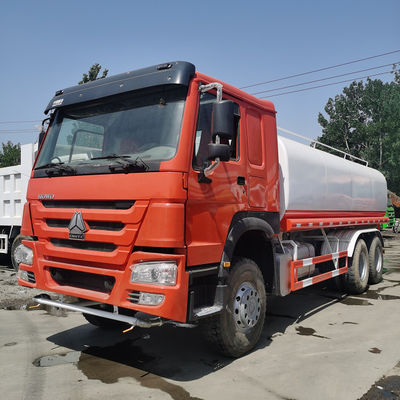

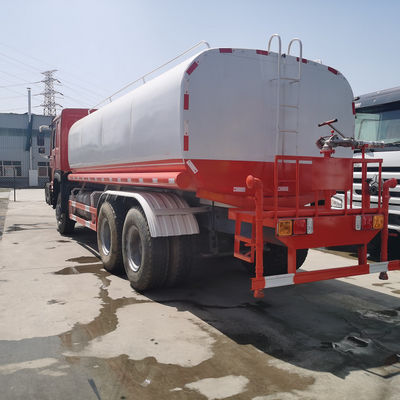

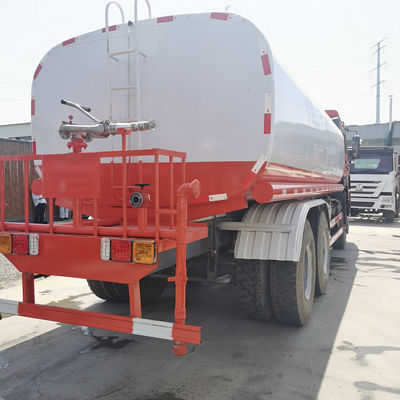

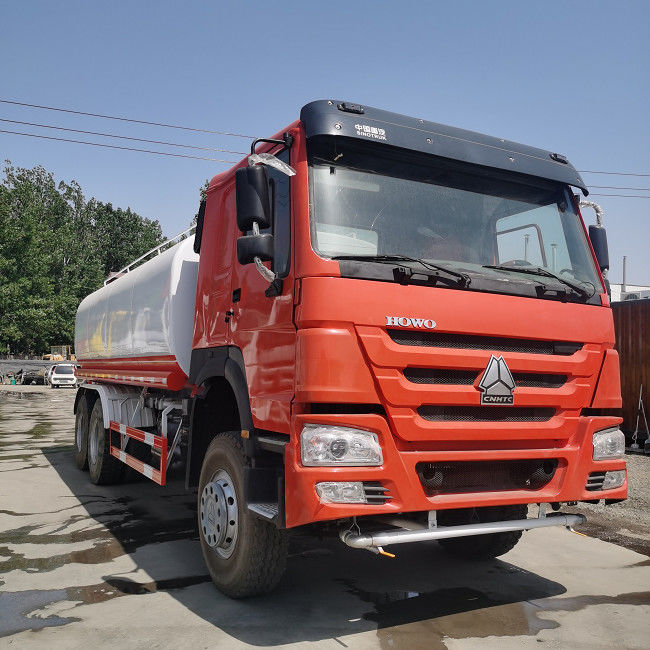

Used Water Tank Truck Used Sinotruck 20000 Liter Water Storage Truck
Used Water Tanker Truck Features:
Howo water tanker body is a metal atmospheric pressure tank body. There are mainly two types, carbon steel
tank and stainless steel tank. And the carbon steel tank body is treated with anti-corrosion treatment.
The tank has two types, elliptical and square circles (rectangular arcs). The head is automatically rotated by a
CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made
of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board
is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.
The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal
wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.
A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet
is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.
The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear
sprinkler, a pressure drain, and a self-flowing drain device.
USED WATER TANKER TRUCK SPECIFICATIONS
| Truck Model |
ZZ1257N4347A1 |
| Truck Brand |
SINOTRUK –HOWO |
| Driving Style |
Left Hand Driving |
| Tank body volume |
20M3 |
| Approaching angle/Departure angle(°) |
19/26 |
| Overhang(front/rear) (mm) |
1500/1739 |
| Wheel base (mm) |
4350+1350(mm) |
| Max speed(km/h) |
75 |
| Maximum gradeability (%) |
40 |
| Minimum ground clearance(mm) |
314 |
| Minimum turning circle (m) |
20 |
| Curb weight(kg) |
12290 |
| Loading Weight(kg) |
25000 |
| Fuel tanker capacity(L) |
300 |
| Fuel consumption(L/km) |
28L/100 km |
| Clutch |
Single-plate dry clutch Φ430mm |
|
Engine Model
(Steyr technology, made in China)
|
Fuel type |
Diesel |
| |
Horse Power, max(kw/rpm) |
336HP |
| |
Emission |
EURO II |
| |
Model |
WD engine 4 Stroke Direct Injection Diesel |
| |
Bore |
126mm |
| |
Stroke |
130mm |
| |
Compression ratio |
29.8hp/l |
| |
Specific fuel consumption |
195g/kwh |
| Transmission |
Model |
HW19710 |
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
| |
Parking brake |
spring energy, compressed air operating on rear wheels
|
| |
Auxiliary brake |
Engine exhaust brake |
|
Steering system
|
Model |
ZF8098 Hydraulic Steering with power assistance. |
| Front axle |
HF7, Steering with double T-cross section beam |
| Rear axle |
ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels REAR AXLE RATIO: 5.73 |
| Color |
Optional (White ,Red ,yellow ) |
| Tyre |
295/80R22.5 x 11pcs
(with one spare tyre)
|
| Ground Clearance |
Ground Clearance of front spray nozzle: 470mm; |
|
Electrical system
|
Battery |
2X12V/165Ah |
| |
Alternator |
28V-1500kw |
| |
Starter |
7.5Kw/24V |

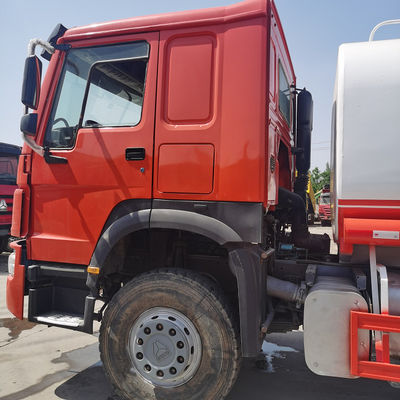

| Cab |
HW76, single sleeper with air conditioner
all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
|
|
