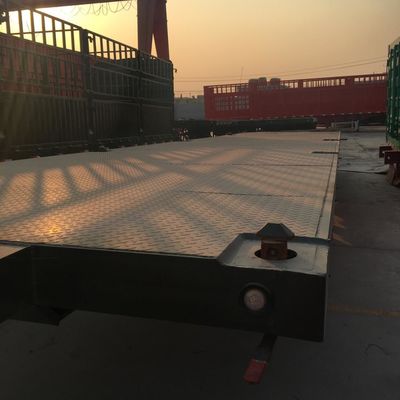

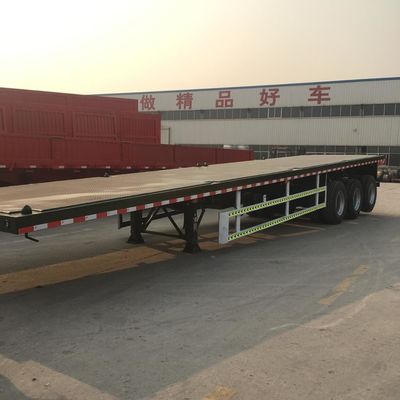

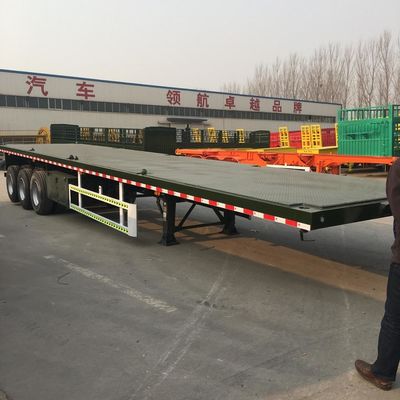

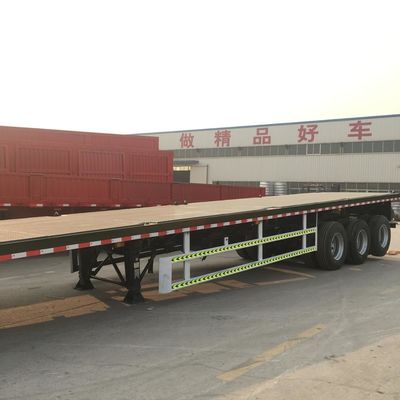

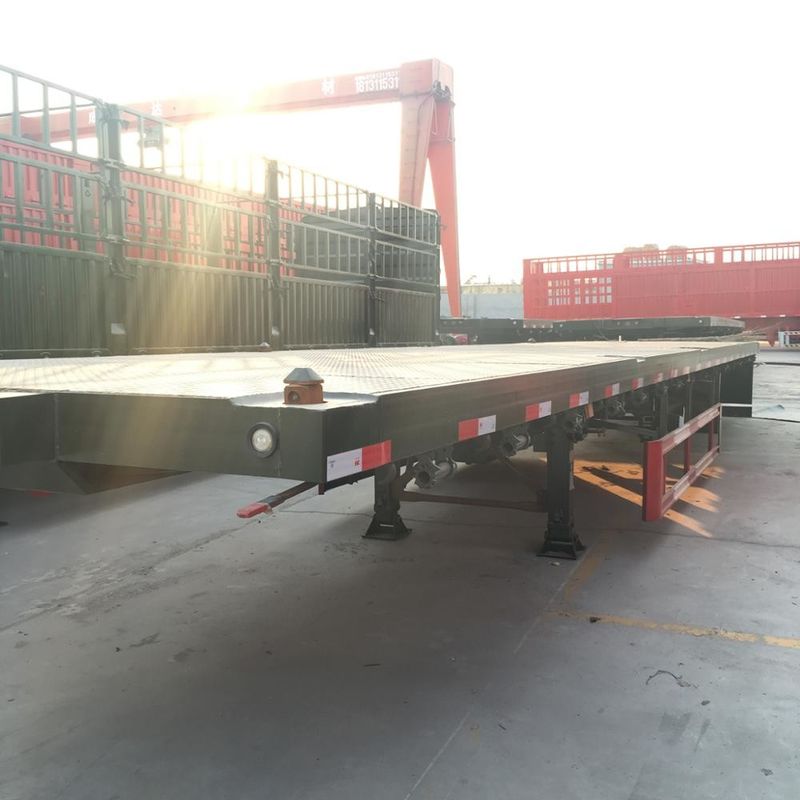

40ft Flatbed Flat Bed Container Semi Trailer Used Truck Trailer
Used Flatbed Semi Trailer Advantages:
Flatbed semi trailer is a basic type of the semi-trailer, versatile in medium and long-distance transportation.
It is suitable for transporting containers, namely 40ft flatbed semi-trailers can transport one 40ft container or
two 20ft containers. These used flatbed semi trailers are not only used for steel and containers, but also for
the items which can be loaded with pallets. We offer different flatbed semi trailers according to customer’s
demand and national regulations. The trailer could be used to transport cargo if the cargo can be fixed on the
plate. The weight of this trailer is less than that of other types, so it is convenient to transport objects.
As a manufacturer, we also deal on second hand flatbed trailers. We choose high quality second hand flatbed
trailers. The I shape beam is made of Q345 or T700 steel, and the upper, middle and lower plate are thick enough
to support huge mass and adapt to terrible road conditions.
When refurbishing the used flatbed semi trailers, we will replace old tires with new or 60%-80% new tires
according to clients requirements. The chassis plays an important role in transporting, so clients can choose new,
stocked or used chassis. Axles are 13t axles, and the brand is optional. If the clients require, we can replace old
axles with new ones. At the same time, the second hand used flatbed semi trailers can be repainted upon clients’ choices.
The price is always what clients care most, so the prices will be different according to client’s order quantity.
USED FLATBED SEMI TRAILER SPECIFICATIONS
| Trailer Model |
3 Axle flatbed Container Semi Trailer |
| Function |
Carry 40ft or 2*20ft container or other stuff |
|
Overall Dimension
(Lx W x H)(mm)
|
12500mm*2500mm*1600mm |
| Tare Weight(KG) |
6350kg |
| Loading Weight( KG) |
40000kg |
| Total Weight(KG) |
46350kg |
| Axle Brand |
3*13TON Axle FUWA Brand |
| Wheelbase(mm) |
7450+1310+1310 |
| Suspension system |
Mechanical Leaf Spring Suspension |
| Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
| The material of Main beam |
Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
| Side beam |
Q235 16# channel steel |
| Platform plate |
3mm Diamond plate |
| Container Twist Locker |
12pcs container lock |
| Tire Type and quantity |
12R22.5 12units |
| Rim |
9.00-22.5 |
| Traction Pin |
2” or 3.5” |
| Spare Wheel Bracket |
2 pieces |
| Tool Box |
1 Standard |
| Landing Gear |
28ton single action supporting legs |
| Brake system |
Dual Line braking system |
| Brake air chamber |
Six double chamber |
| Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| |
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| |
One set 6-core standard Cable. |
|
