Product Details:
|
| Rear Axle: | MCY13JGS | Engine Model: | MC13.540-50 |
|---|---|---|---|
| Displacement: | 12.419 L | Fuel Tank Capacity: | 600L |
| Transmission: | ZF16S2530TO | Front Axle: | HF7 Disc Brake |
| Emission Standard: | Euro V | Maximum Speed: | 101 Km/h |
| High Light: | Sitrak C7H 540,Second Hand Sitrak C7H 540,600L Fuel Tank Tractor Truck |
||

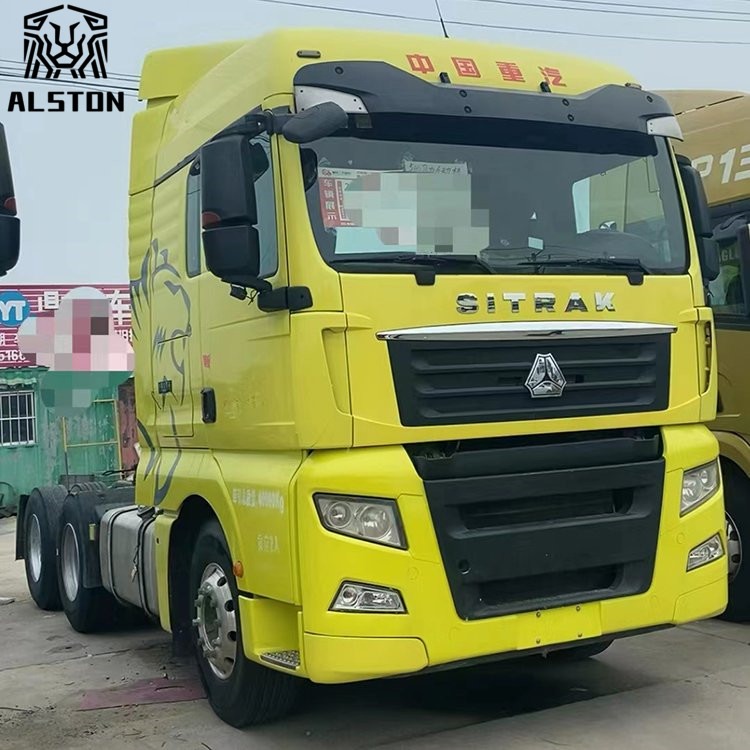

Sitrak C7H is a heavy-duty truck produced by Sitrak, designed for heavy and long-distance transportation. It is equipped with a fuel tank capacity of 600L, a VGD70S front axle, an Eaton 430 clutch, a MCY13JGS rear axle, and meets Euro V emission standard. This model is known for its reliable performance, efficient fuel economy, and safety. With its durable construction and advanced engineering, Sitrak C7H is the perfect choice for long-distance commuting, heavy cargo transportation, and more. Sitrak truck is the ideal choice for customers looking for a reliable, efficient, and safe truck for their transportation needs.
| Sitrak C7H 6x4 Tractor Truck 540hp ZZ4256V324HE1B | |
| Basic information | |
| Model: | ZZ4256V324HE1B |
| Driving form: | 6X4 |
| Wheelbase: | 3200+1400mm |
| Engine: | Sinotruk MC13.54-50 |
| Gearbox: | ZF16S2530TO |
| Rear axle speed ratio: | 4.11 |
| Body length: | 6.895 meters |
| Body width: | 2.496 meters |
| Body height: | 3.62 meters |
| Front wheel base: | 2022 mm |
| Rear wheel base: | 1830/1830 mm |
| Vehicle weight: | 8.8 tons |
| Total mass: | 25 tons |
| Total traction mass: | 40 tons |
| Maximum speed: | 101 km/h |
| Tonnage class: | Heavy truck |

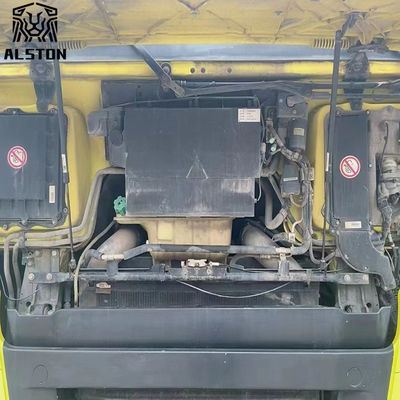

| Engine parameter | |
| Engine type: | Sinotruk MC13.54-50 |
| Engine brand: | Sinotruk |
| Number of cylinders: | 6 |
| Fuel Type: | Diesel oil |
| Cylinder arrangement: | orthostitial |
| Displacement: | 12.419 L |
| Emission standard: | Euro 5 |
| Maximum horsepower: | 540 HP |
| Maximum output power: | 397 kW |
| Maximum torque: | 2500 N·m |
| Maximum torque speed: | 1000-1400 rpm |
| Rated speed: | 1900 rpm |

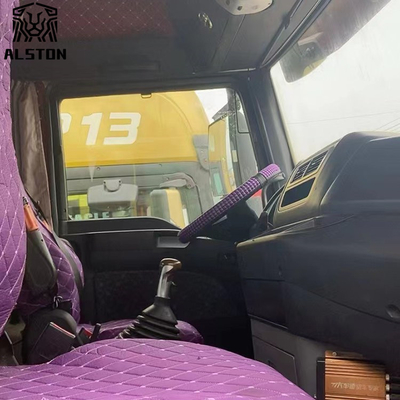

| Cabin parameter | |
| Cab: | High roof |
| Lower berth width: | 800mm |
| Passengers: | 3 |
| Number of seats: | A row and a half |
| Transmission parameter | |
| Transmission model: | ZF16S2530TO |
| Shift mode: | Manual |
| Forward gear: | 16 speed |
| Number of reversals: | 2 |
| Fuel tank | |
| Tank capacity: | 600L |

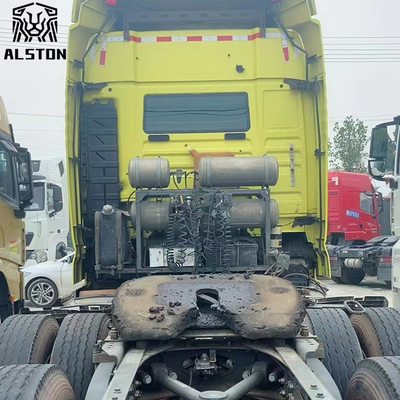

| Chassis parameter | |
| Front axle description: | HF7 disc brake |
| Rear axle description: | MCY13Q |
| Front axle allowable load: | 7000KG |
| Rear axle allowable load: | 18000 kg (dual-axis) |
| Speed ratio: | 4.11 |
| Suspension form: | Leaf Spring |
| Number of spring pieces: | 3/5 |
| Clutch: | Φ430 |
| Saddle | 90# |

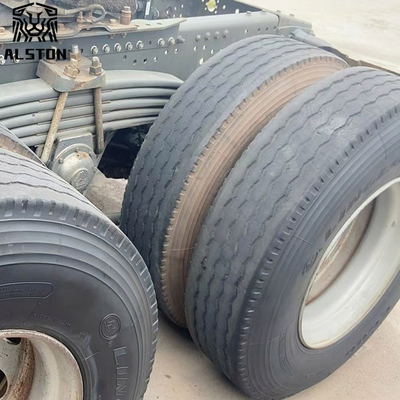

| Tyre | |
| Number of tires: | 10 |
| Tire Specifications: | 315/80R22.5 |
The Sinotruk Sitrak C7H Tractor Truck is an ideal choice for various hauling needs. With its powerful MC13.54-50 engine and VGD70S front axle, the Sitrak C7H 540 can handle heavy loads of up to 700L fuel tank capacity. The ZF16S2530TO transmission ensures smooth rides. The truck is also equipped with the reliable MCY13JGS rear axle to make it a reliable road hauler. Thanks to its CCC certification, the Sitrak Sinotruk C7H can be used in a wide range of applications. It is available in minimum order quantity of 1 unit and can deliver within 20 days after deposit. The truck is packaged in either nude or waxed form before delivery according to customers' request. With 500 units of supply ability per year, the C7H Sitrak Truck is definitely the perfect choice for any hauling needs.
Sitrak Truck offers world-class technical support and service for its products. Our experienced professionals provide a range of services, including:
We also offer comprehensive warranty coverage for all Sitrak Truck products, ensuring that your truck is running smoothly and efficiently. If you have any questions or concerns about your truck, please don't hesitate to contact us.
Contact Person: bruce
Tel: +86 18315424206
