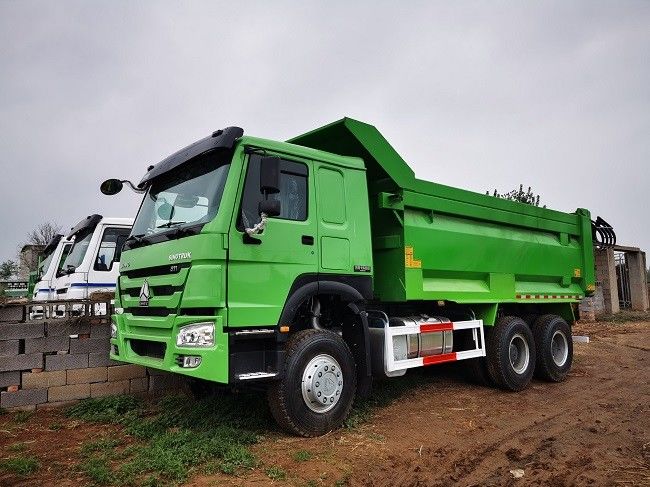

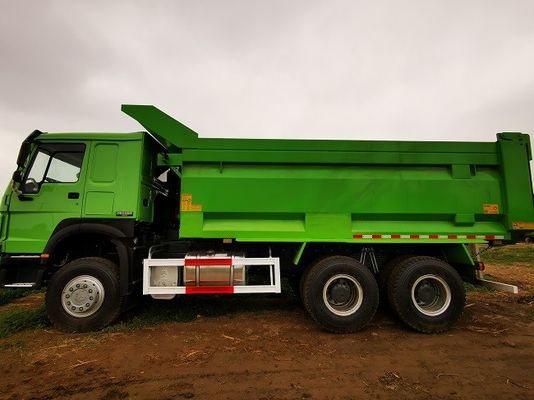

Dump Trucks Used Heavy Duty 10 Wheeler Dump Truck Used Tipper
Features of Used Howo Dump Truck:
The production date of used howo dump trucks is 2014 -2018；
Europe 2 to Europe 3 can choose；
Mileage of used dump truck is from 30000 to 70000 kilometers；
The service life is about 8 years, which depends on the road condition and the maintenance of the truck.
According to customer's preference, we have two options on truck refurbishment.
Plan A:
The cab spray paint refurbishment, the interior decoration is all new;
Used hydraulic roof; All new truck body;
All new tires; Chassi refurbishment;
Engine maintenance, replacement of oil;
Replace the whole truck gear oil;
Electric circuit , air circuit and other functions are normal.
Plan B:
The cab is painted and renovated, and the interior is clean;
Used hydraulic roof; all new truck body;
90% new tires; Refurbishment of the chassis;
The performance of the engine is good;
Electrical circuit, gas circuit and other functions are normal.
SPECIFICATIONS OF USED TIPPER
| Truck Model |
ZZ3257N3847C |
| Driving Style |
Left Hand Driving |
| Dimension(Lx W x H)(unloaded)(mm) |
8265x2496x3490 |
| Cargo body size (L*W*H, mm) (mm) |
5400x2300x1500mm 18.63m3 |
| Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
| Lift type of Carriage |
Middle lifting system |
| Approaching angle/Departure angle(°) |
20/26 |
| Overhang(front/rear) (mm) |
1540/1750 |
| Wheel base (mm) |
3625+1350 |
| Max speed(km/h) |
78 |
| Curb weight(kg) |
12270 |
| Loading Weight(kg) |
30,000 |
| Fuel tanker capacity(L) |
300 |
| Clutch |
Single-plate dry clutch Φ430mm |

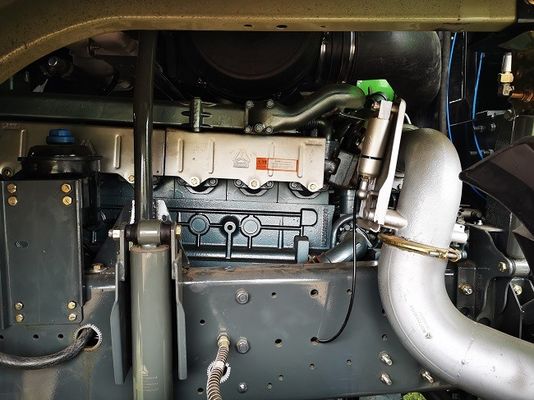

| Engine Model |
Fuel type |
Diesel |
| Horse Power, max(kw/rpm) |
371HP |
| Emission |
EURO II |
| Model |
WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection |
| Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
| Brake system |
Service brake |
Dual circuit compressed air brake |
| Parking brake |
spring energy, compressed air operating on rear wheels |
| Auxiliary brake |
Engine exhaust brake |
| Steering system |
Model |
ZF8118 hydraulic steering with power assistance |
| Front axle |
HF9 , Steering with double T-cross section beam |
| Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Color |
Optional (White ,Red ,yellow ) |
| Tyre |
12.00R20 radial tires, 10+1pcs |
| Electrical system |
Battery |
2X12V/165Ah |
| Alternator |
28V-1500kw |
| Starter |
7.5Kw/24V |
| Cab |
HOWO76 Cab , single sleeper with air conditioner |
|
