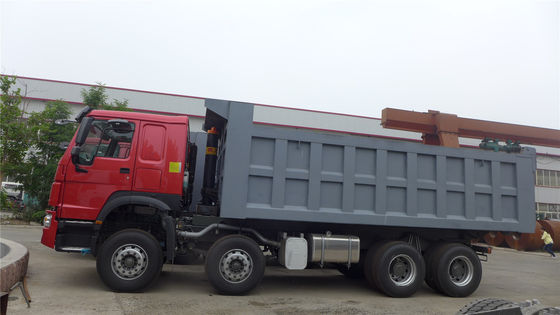

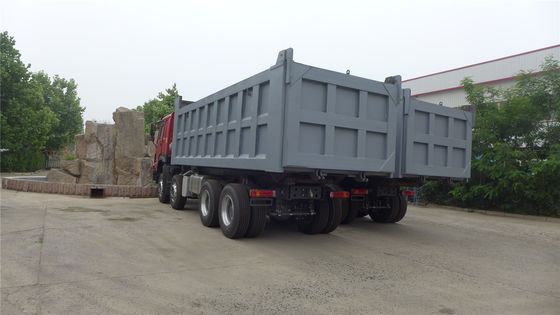

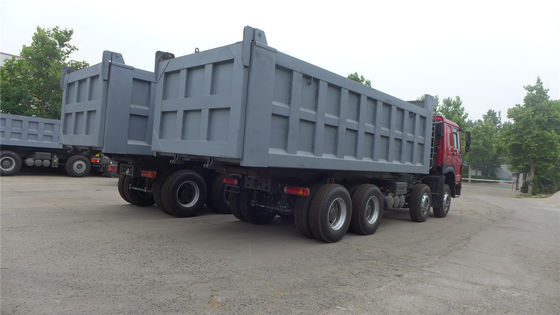

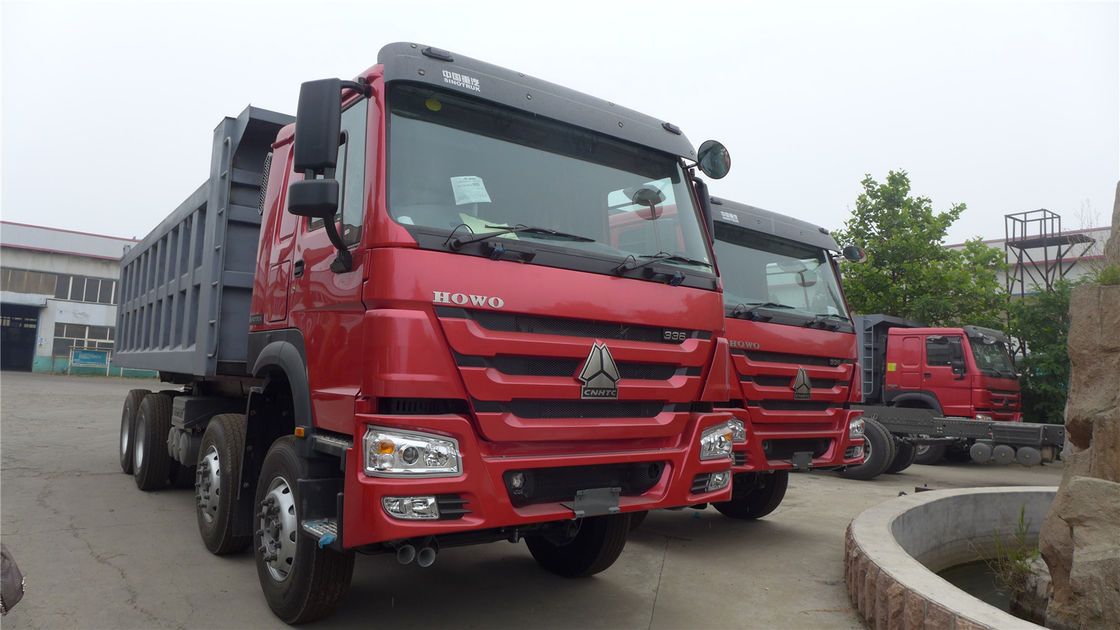

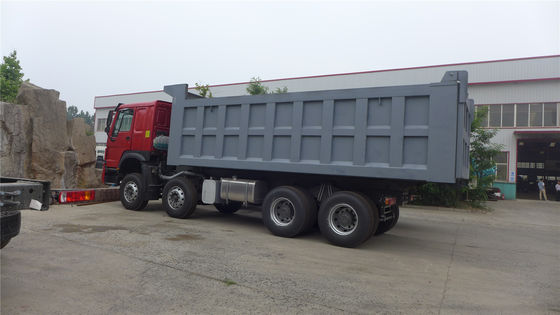

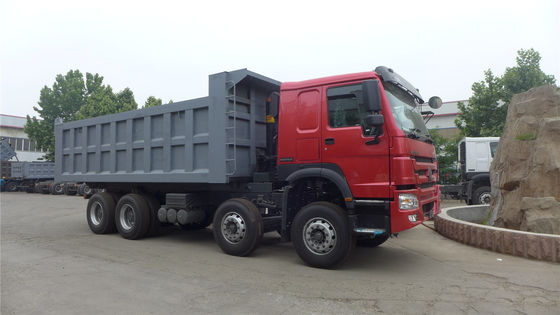

Used Howo Dump Truck 8x4 Loading Capacity Heavy Duty Tipper Truck
Introduction of 8x4 Tipper Truck:
The main specification of used howo 8x4 dump truck as below mentioned:
Sleeper with air conditioner, HW19710 gearbox, ZF8098 imported steering gear, AC16 axle,
HF9-ton front axle, 12.00R20 tires, cargo box size: 8200L * 2300W * 1500H(mm).The cargo box of
dump truck and the tires can be optional too.
Used howo 12 wheeler dump truck sell well at home and abroad, and are exported to more than 90
countries around the world. Howo 30 ton dump truck has been identified as the national automobile export
base by the National Development and Reform Commission and the Ministry of Commerce.
Our company has been awarded the honorary title of the national advanced grassroots party organization,
China's famous brand products, China's outstanding innovative enterprises, the country's best integrity enterprise,
and the country's first batch of quality credit management AA enterprises.
The quality of howo heavy-duty truck technology has reached the world's advanced level, and other products
have become domestic first-class.
SPECIFICATIONS OF USED 8X4 TIPPER TRUCK
| Basic Information |
| Truck Model |
ZZ3317N4267 |
Truck Brand |
SINOTRUCK-HOWO |
| Driving Type |
LHD |
Driving Type |
8x4 |
| Dimension (LxWxH) |
11050x2496x3450 mm |
Curb Weight (KG) |
12280 |
| Cargo Body Size (LxWxH) |
8000x2300x1500 mm |
Load Weight (KG) |
40000 |
|
Cargo Body Thickness
|
Bottom:8mm |
Wheel Base
|
Rear Wheel Base:1830/1830mm |
| |
Side:6mm |
|
Front Wheel Base:2022/2041mm |
| Lift Type Of Carriage |
Front Lifting |
Overhang
|
Front:1500/1975 |
| Max Speed (Km/h) |
75 |
|
Rear:1500/2095 |
| Engine |
|
Model
|
WD 615.47,water-cooled,four strokes,6 cylinders in line with water cooling,directly injection |
Brand
|
SINOTRUCK HOWO
|
| Emission |
Euro II |
Horse Power |
371 (Kw/rpm) |
| Fuel Type |
Diesel |
Number of Cylinders |
6 |
| Chassis |
|
Axle
|
Front HF 9,Steering with double T-cross section beam |
Rear HC 16,Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Spring |
11/11/12 |
Number of Axle |
3 |
| Transmission |
HW19710,10 forwards and 2 reverse |
Tire |
12.00R20 Radial tires |
| Fuel Taker Capacity |
400 L |
Tire Quantity |
12+1 spare |
| Fuel Consumption |
20-40 L/100 km |
Rear Axle Ratio |
5.45 |
| Truck Head |
| Cab |
HW76 cab,one slpper with air-condition |
Brand |
SINOTRUCK HOWO |
|
Electrical System
|
Battery |
2x12V/165 Ah |
Brake System
|
Service Brake |
Dual circuit compressed air brake |
| |
Alternator
|
28V-1500Kw
|
|
Parking Brake |
Spring energy,compressed air operating on rear wheels |
| |
Starter |
7.5Kw/24V |
|
Auxiliary Brake |
Engine exhaust brake |
| Steering System |
ZF8118 Hydraulic steering with power assistance |
Color |
Optional |
|
Bulk Ship
Flat Rack Container
Ro-Ro Ship
Our Workshop:
Export Record:
8 units of Dump truck exported to Burkina Faso,TETACAR company
5 units of Dump Truck exported to Nigeria,CA transport company
20 units of Dump truck to Malawi ,ETS Company
5 units of Dump Truck exported to Dubai ,ATM OCT Company
