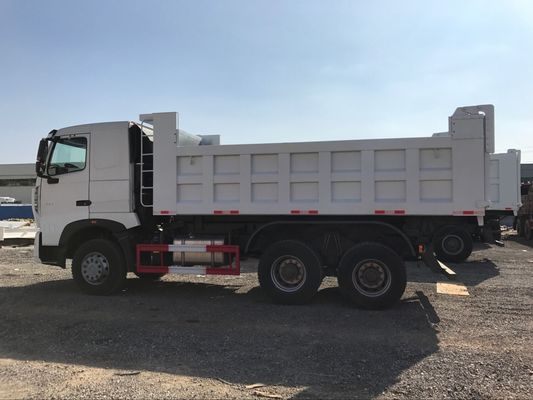

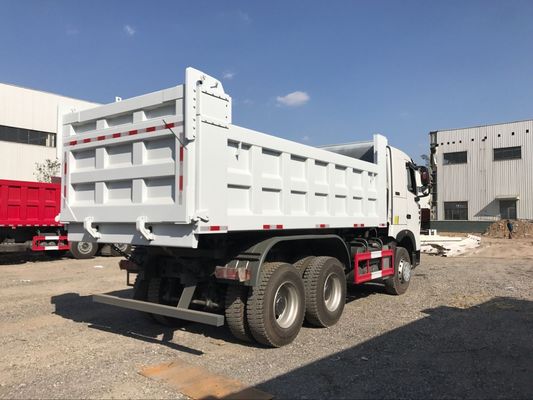

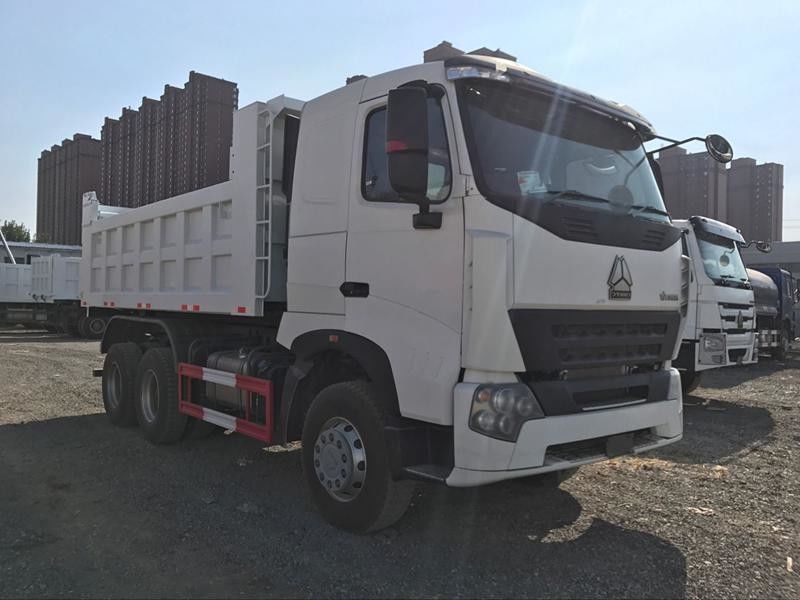

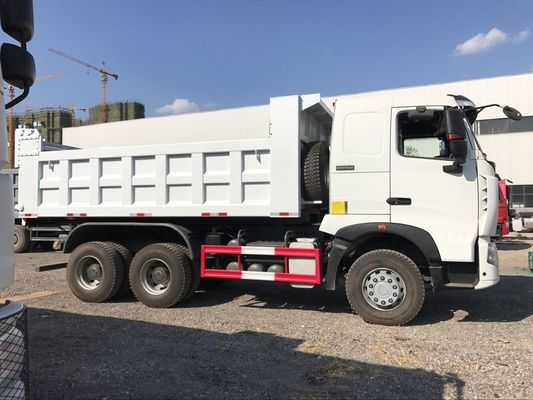

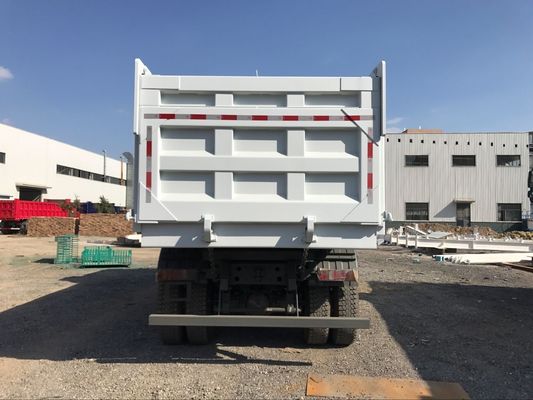

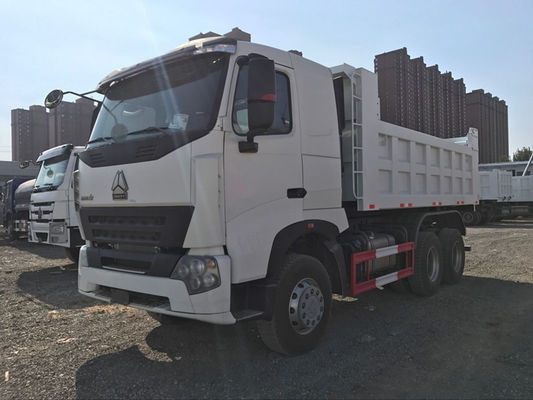

Howo A7 Dump Truck Sino Sinotruk Howo 371 6x4 Tipper Used Dump Truck
Features of HOWO A7 Dump Truck:
The characteristic of used howo dump truck is that its carriage can be tilted at a certain angle so that the
goods in the carriage can be unloaded. It is driven by the engine of howo a7 dump truck and completed by
the dump mechanism because unloading can automatically dump materials at a certain angle.
Howo dump truck is a commonly used transportation machine to save unloading time and labor, shorten
transportation cycle, improve production efficiency and reduce transportation cost.
Used Howo dump truck is composed of engine, chassis, cab and carriage. The structure of engine, chassis
and cab is the same as that of general trucks.In order to roll backward or side to side, backward tipping is more
common, a few two-way tipping. The front of the howo dump truck is equipped with a safety guard board for the cab.
The tipping mechanism is composed of oil tank, hydraulic pump, distribution valve, lifting hydraulic cylinder,
pushing the piston rod to make the truck overturn. Control the piston rod movement through the control system.
SPECIFICATIONS OF HOWO A7 USED DUMP TRUCK
| Truck Model |
ZZ3257N3647P1 |
| Truck Brand |
HOWO A7 |
| Driving Style |
Left Hand Driving |
| Dimension(Lx W x H)(unloaded)(mm) |
8265x2496x3490 |
| Cargo body size (L*W*H, mm) (mm) |
5400x2300x1500mm 18.63m3 |
| Cargo thickness(mm) |
Bottom:8mm, Side:6mm |
| Lift type of Carriage |
Middle lifting system |
| Approaching angle/Departure angle(°) |
20/26 |
| Overhang(front/rear) (mm) |
1540/1750 |
| Wheel base (mm) |
3625+1350 |
| Max speed(km/h) |
78 |
| Curb weight(kg) |
12270 |
| Loading Weight(kg) |
30,000 |
| Fuel tanker capacity(L) |
300 |
| Clutch |
Single-plate dry clutch Φ430mm |
|
Engine Model
|
Fuel type |
Diesel |
| |
Horse Power, max(kw/rpm) |
371HP |
| |
Emission |
EURO II |
| |
Model |
WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling , electric injection |
| Transmission |
Model |
HW19710, 10 forwards and 2 reverse |
|
Brake system
|
Service brake |
Dual circuit compressed air brake |
| |
Parking brake |
spring energy, compressed air operating on rear wheels |
| |
Auxiliary brake |
Engine exhaust brake |
|
Steering system
|
Model |
ZF8118 hydraulic steering with power assistance |
| Front axle |
HF9 , Steering with double T-cross section beam |
| Rear axle |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
| Color |
Optional (White ,Red ,yellow ) |
| Tyre |
12.00R20 radial tires, 10+1pcs |
|
Electrical system
|
Battery |
2X12V/165Ah |
| |
Alternator |
28V-1500kw |
| |
Starter |
7.5Kw/24V |
| Cab |
A7- W , single sleeper with air conditioner |
|
Bulk Ship
Flat Rack Container
Ro-Ro Ship
Our Workshop:
Export Record:
8 units of Dump truck exported to Burkina Faso,TETACAR company
5 units of Dump Truck exported to Nigeria,CA transport company
20 units of Dump truck to Malawi ,ETS Company
5 units of Dump Truck exported to Dubai ,ATM OCT Company
