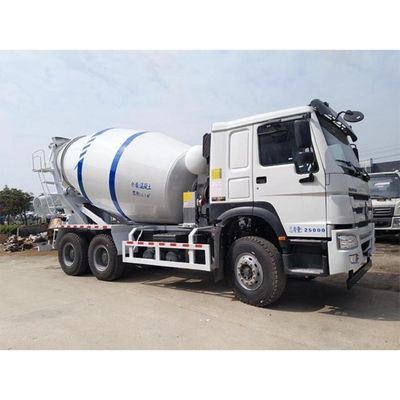

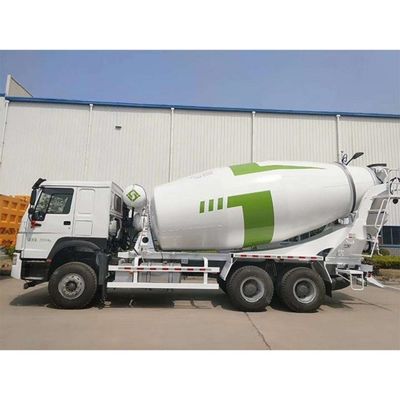

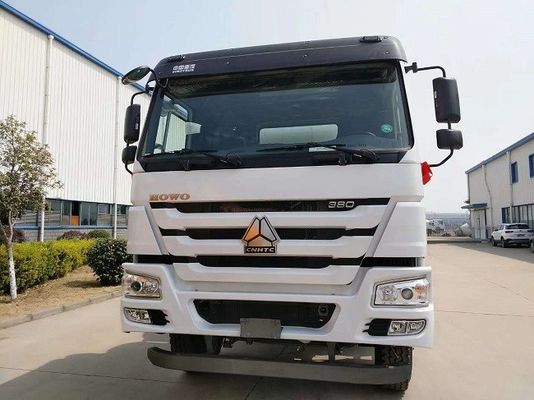

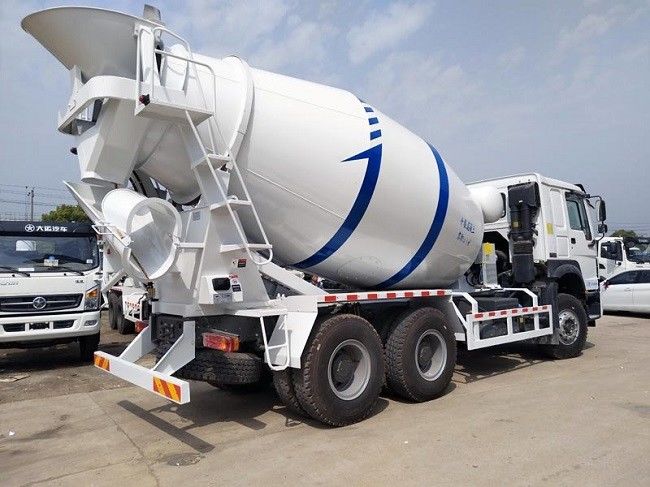

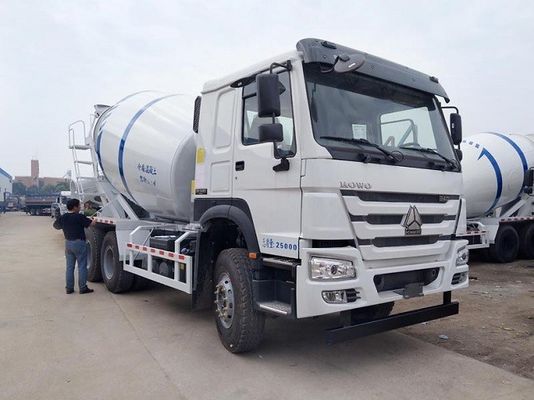

China Howo Sinotruk 6x4 Cement Delivery Used Concrete Mixer Truck
Used Howo Concrete Mixer Truck Features:
1. Howo used concrete mixer truck opting left hand drive or right hand drive.
2. Optional for chassis: 4x2, 4x4,6x4, 6x6, 8x4, 8x8 models.
3. 3m3, 5m3, 6m3, 8m3, 9m3, 10m3, 12 m3 14m3 etc, many capacities are available to choose.
4. Provide with different brand chassis: DONGFENG, SINTRUK, SHACMAN, NORTH BENS, FOTON,
HINO, ISUZU, JMC.
Features
1. Howo mixing drum body uses double helical blades that makes its density moderate, with symmetrical
mixing board on the front taper place; double blades and guiding blades of discharge are installed on
the outlet of drum, which makes the discharge more evenly, faster in speed, and convenient for the pumping
transportation of other devices (such as automobile pump).
2. Low angle for mixing drum can extend the service life of hydraulic pump, motor and reducer. The sub
frame uses high intensity square tube with damping in the central area that can play role when vehicle is at
full load and under the bad conditions of road, which can lower the center of gravity of truck and make it
move more smoothly.
3. The upload production of howo used concrete mixer truck adopts multiple advanced technology, which
can produce various types of mixer in volume such as 3m3, 5m3,6m3,8m3, 9m3,10m3, 12 m3,18 m3 etc.
USED HOWO TRUCKS PARAMETERS
| Chassis model |
ZZ1257N3841W (Overall dimension: 8560x2496x3800mm) |
| Engine |
WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm. |
| Cabin |
HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper. |
| Clutch |
∮430 diaphragm spring clutch, hydraulic control air power assisted. |
| Transmission |
HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m |
| Drive Axle |
HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8. |
| Front Axle |
HF9, 9ton, drum brake |
| Chassis |
Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO |
| |
Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer |
| |
Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel |
| |
Fuel tank: 300 L capacity, with locking fuel cap |
| Steering |
ZF8118, hydraulic steering with power assistance, LHD |
| Brake system |
Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust. |
| Tyre |
12.00R20 Radial plus one spare tyre (11 units) |
| Mixing Tank |
Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm |
| Other Specification |
With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor |
|
Flat Rack Container Bulk Ship Ro-Ro Ship
After Refurbishment
