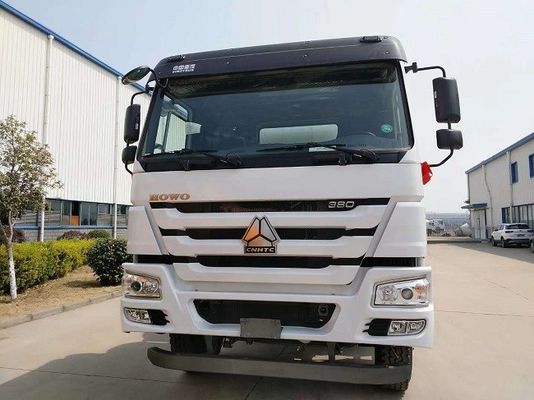

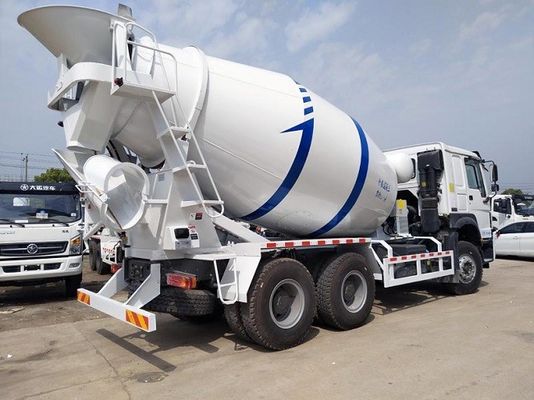

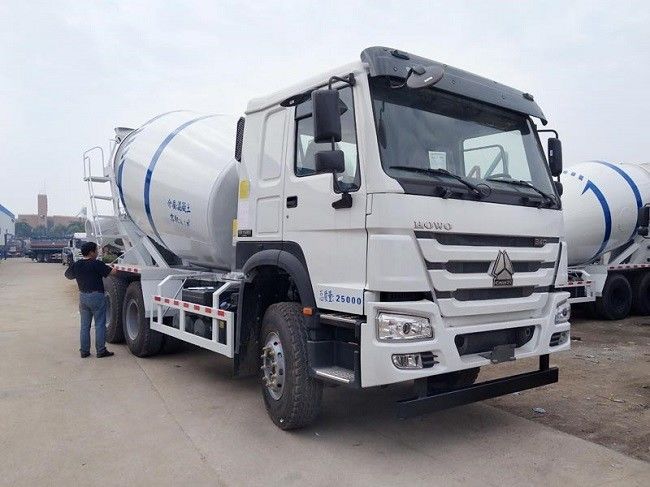

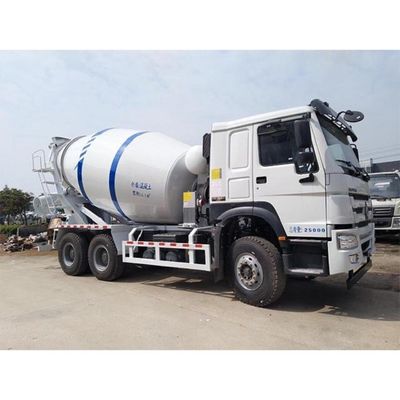

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck
Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck

Large Image :  Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck

Product Details:
Place of Origin: CHINA
Brand Name: HOWO
Certification: CCC, ISO, CE
Model Number: ZZ1257N3841W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $14000/unit-$18000/unit
Packaging Details: Nude, Waxing before delivery
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30units per month

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck

Description
Product Name: Used Howo Trucks Warrranty: 1 Year
Drive Type: 6x4 Mixer Pump: Eaton(USA Brand)
Motor: Eaton(USA Brand) Speed Reducer: Bonfiglioli(Italy Brand)
Highlight:

6x4 howo concrete mixer truck

,

9M3 howo concrete mixer truck

,

Heavy Duty concrete mixing lorry

Heavy Duty Concrete Mixer Truck Used 9M3 Concrete Howo Mixer Truck



Used Howo Concrete Mixer Truck Description:



Sinotruk Howo used concrete mixer truck is to transport the concrete or mortar that has been stirred in the

concrete mixer to the construction site. Since the mixing tank of the concrete mixer truck can be rotated and

adjustable, the concrete mixer can be transported to the maximum. The guarantee of the limit is not separated

during the specified distance and time of transportation, the coarse aggregate does not settle, and the good

workability is maintained. Howo used concrete mixer truck is mostly used for the construction of commercial

mixing stations and large projects.



                              USED HOWO TRUCKS SPECIFICATIONS

Chassis model ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
Engine WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch ∮430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle HF9, 9ton, drum brake
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
  Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
  Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
  Fuel tank: 300 L capacity, with locking fuel cap
Steering ZF8118, hydraulic steering with power assistance, LHD
Brake system Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre 12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 0

Flat Rack Container                  Bulk Ship                               Ro-Ro Ship

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 1

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 2

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 3Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 4

After Refurbishment

Heavy Duty Second Hand 9M3 Howo Concrete Mixer Truck 5
