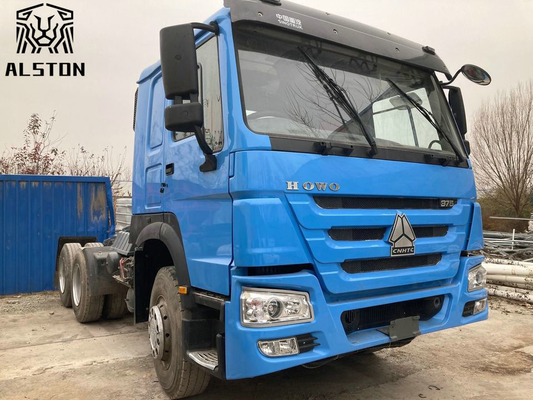

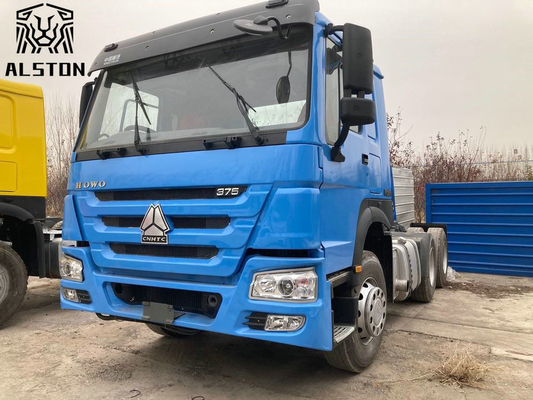

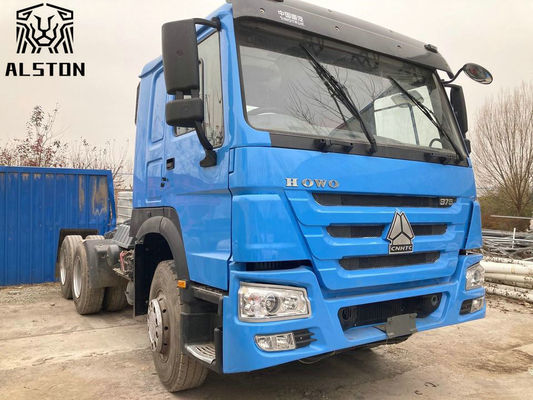

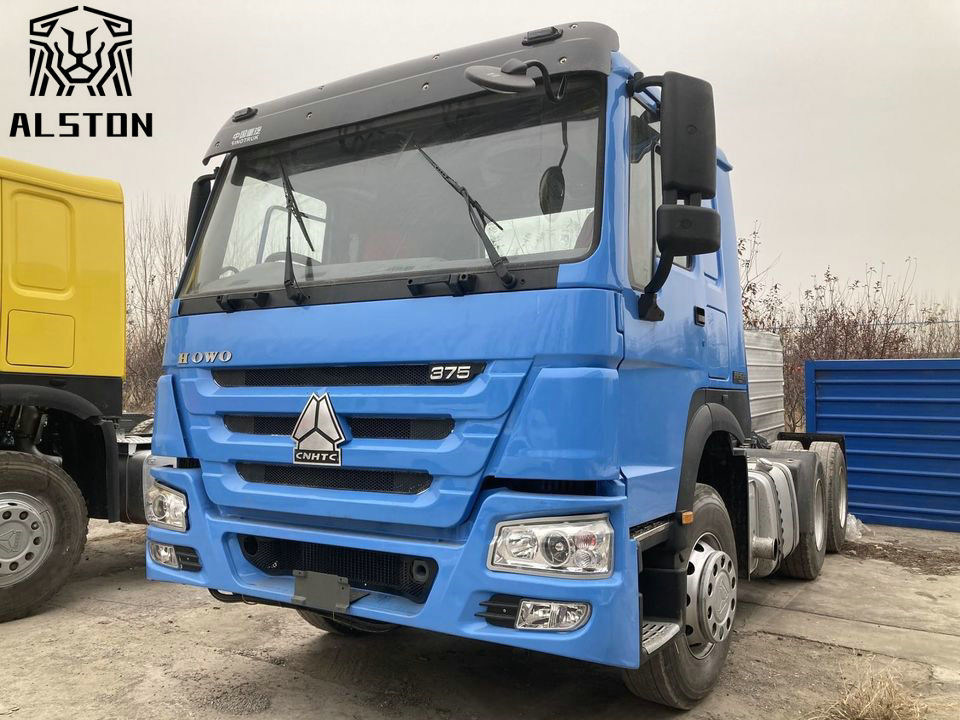

Fairly Used Howo Trucks, Used Howo Tractor Truck 6x4
1. Mining work: Transport the bauxite, manganese ore, golden, coal, uranium etc.
2. Construction work: Transport the sand, stone, construction waste etc.
3. Logistics work: Haulage the bulk goods, such as food, container etc.
II. Advantages
1. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4.
2. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
3. Factory direct sale, reliable quality.
6. Export experience more than 17 years.
III. Security--Brake Cautions
Urgently Loosing of Spring Brake Cylinder
When the connecting pipe of spring brake cylinder is braking self-powered because of leakage, loosen the bolt of cylinder to the released position and the brake is released.
Notice: Before loosing the spring brake cylinder, shift into first gear and examine wheather the service brake (foot braking) is normal.
When loosing the spring brake cylinder on the uphill/downhill road, please block the wheel to prevent vehicle slippage.
Usage of Charging Connector
Because use the combined air dryer, combine the adjusting valve and the air dryer together, install charging connector on the dryer. Screw on charging tube over the charging connector, and charge the wheel itself and also charge the wheel from the air source outside.
Maintenance of Braking Line
When welding, cutting and drilling near the plastic pipe for braking, it should be subject to the following provisions:
1. Let out the gas in the pipe;
2. Cover the pipe in order to avoid to be damaged by the spark, fire and glowed chip;
3. The permitted temperature without any pressure pipe is 130°C, the duration is one hour.
Warning: Battery and other electrical parts connected with the electronic device (main-control, driven, instrument and ECU etc.) should be cut off or pull out!
IV. USED HOWO TRUCKS SPECIFICATIONS
| Truck Model |
ZZ4257S3241W (Left Hand Drive/Right Hand Drive) |
| Dimension(Lx W xH)(mm) |
6800x2496x3668 |
| Approaching angle/Departure angle(°) |
16/70 |
| Overhang(front/rear) (mm) |
1500/700,725 |
| Wheel base (mm) |
3200+1400,3225+1350 |
| Max speed(km/h) |
102 |
| Curb weight(kg) |
8800 |
| Loading Weight(kg) |
60000 |
| Engine (Steyr technology, made in China) |
Model |
WD615.47,water-cooled,four |
| strokes,6 cylinders in line with water cooling,turbo-charged and intercooling, directly injection |
| Fuel type |
Diesel |
| Horse Power,max |
371HP/375HP/420HP |
| Emission |
EURO2/3 |
| Fuel tanker capacity(L) |
400 |
| Transmission |
Model |
HW19710 |
| Brake system |
Service brake |
Dual circuit compressed air brake |
| Parking brake |
Spring energy, compressed air |
| operating on rear wheels |
| Steering system |
Model |
ZF8118 |
| Front axle |
HF9 ( Steering with double T-cross section beam |
| Loading capacity: 9000kg) |
| Rear axle |
HC16, 16ton loading capacity, 2units |
| Color |
Upon Request |
| Tyre |
12R22.5 11pcs |
| King Pin |
90# |
| Electrical system |
Battery |
2X12V/165Ah |
| Alternator |
28V-1500kw |
| Starter |
7.5Kw/24V |
| Cab |
HOWO76 cab, (one sleeping, with air-condition) |
|
V. Shipping Method
Flat Rack Container
Bulk Ship
Ro-Ro Ship
VI.Our Refurbishment Workshop:
VI. Export Record
22 units howo tractor truck to Tanzania, Simba Logistics Company
2 units used howo A7 tractor to Philippines
30 units howo tractor truck to Mali, Toguna Motors Company
