10M3 371HP Used Howo Concrete Mixer Truck

10M3 371HP Used Howo Concrete Mixer Truck
10M3 371HP Used Howo Concrete Mixer Truck 10M3 371HP Used Howo Concrete Mixer Truck 10M3 371HP Used Howo Concrete Mixer Truck 10M3 371HP Used Howo Concrete Mixer Truck 10M3 371HP Used Howo Concrete Mixer Truck 10M3 371HP Used Howo Concrete Mixer Truck

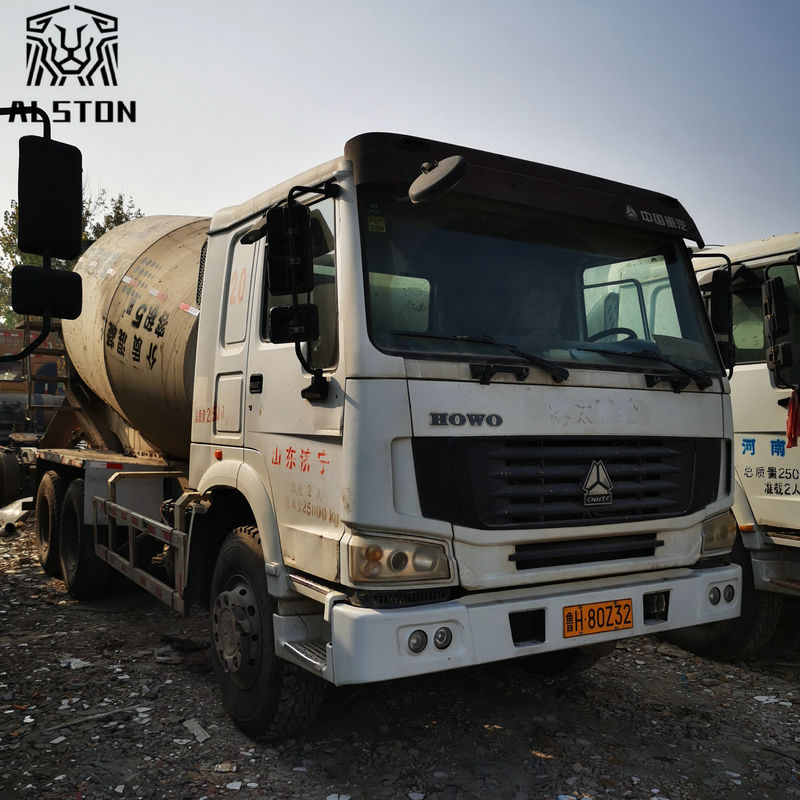

Large Image :  10M3 371HP Used Howo Concrete Mixer Truck

Product Details:
Place of Origin: CHINA
Brand Name: HOWO
Certification: CCC, ISO, CE
Model Number: ZZ1257N3841W
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $14000/unit-$17000/unit
Packaging Details: Nude, Waxing before delivery
Delivery Time: 10-15 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30units per month

10M3 371HP Used Howo Concrete Mixer Truck

Description
Conditions: Used Concrete Mixer Truck Size: 8560x2496x3800mm
Warrranty: 1 Year Product Name: Howo Concrete Mixer Truck
Engine: WD615.69 Emission: Euro 2
Highlight:

10M3 howo concrete mixer truck

,

371HP howo concrete mixer truck

,

Howo ready mix concrete truck

Used Howo Concrete Mixer Truck 371hp 10M3 Used Concrete Mixer Truck



Description of Used Howo Concrete Mixer Truck:



At present, used concrete mixer truck is an indispensable professional transportation tool for urban construction

roads, bridges, houses, water conservancy projects and mixing stations. Sinotruk howo used concrete mixer truck

has the characteristics of narrow body, short wheelbase, small turning radius and other personalized designs and

has strong advantages in working environments with limited height, width and length. The concrete mixing and

transportation tank produced by Sinotruk can rely on the power of the dump truck to drive the gear oil pump and

the hydraulic motor to drive the tank truck to run. The hydraulic components are controlled by the control lever,

which can realize the normal and fast operation of the tank truck, fast feeding, fast unloading and slow unloading

materials. Thanks to the oil circuit cooler, the oil temperature is always kept below 55°C to ensure the stable

operation of the hydraulic motor.



          SPECIFICATIONS OF USED CONCRETE MIXER TRUCK

Chassis model ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
Engine WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch ∮430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle HF9, 9ton, drum brake
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
  Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
  Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
  Fuel tank: 300 L capacity, with locking fuel cap
Steering ZF8118, hydraulic steering with power assistance, LHD
Brake system Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre 12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor

10M3 371HP Used Howo Concrete Mixer Truck 0

Flat Rack Container                  Bulk Ship                               Ro-Ro Ship

10M3 371HP Used Howo Concrete Mixer Truck 1

10M3 371HP Used Howo Concrete Mixer Truck 2

OUR WORKSHOP:

10M3 371HP Used Howo Concrete Mixer Truck 3

10M3 371HP Used Howo Concrete Mixer Truck 4

After Refurbishment

10M3 371HP Used Howo Concrete Mixer Truck 5
