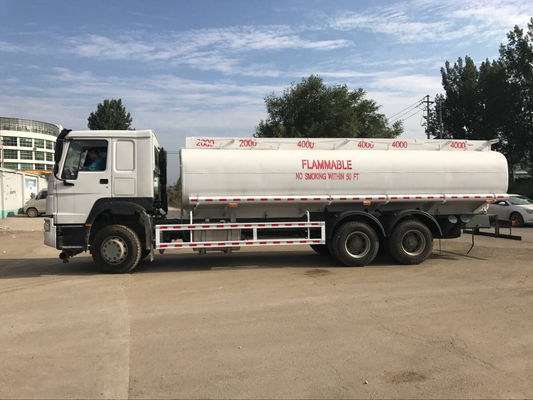

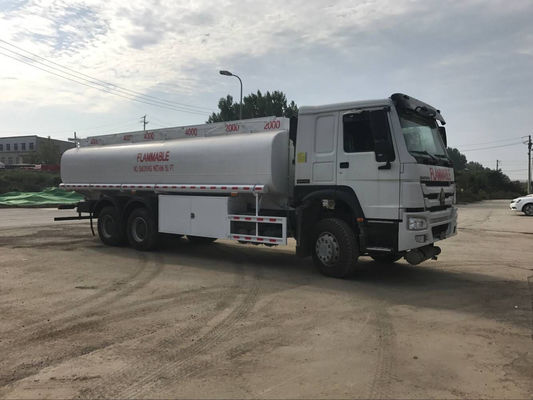

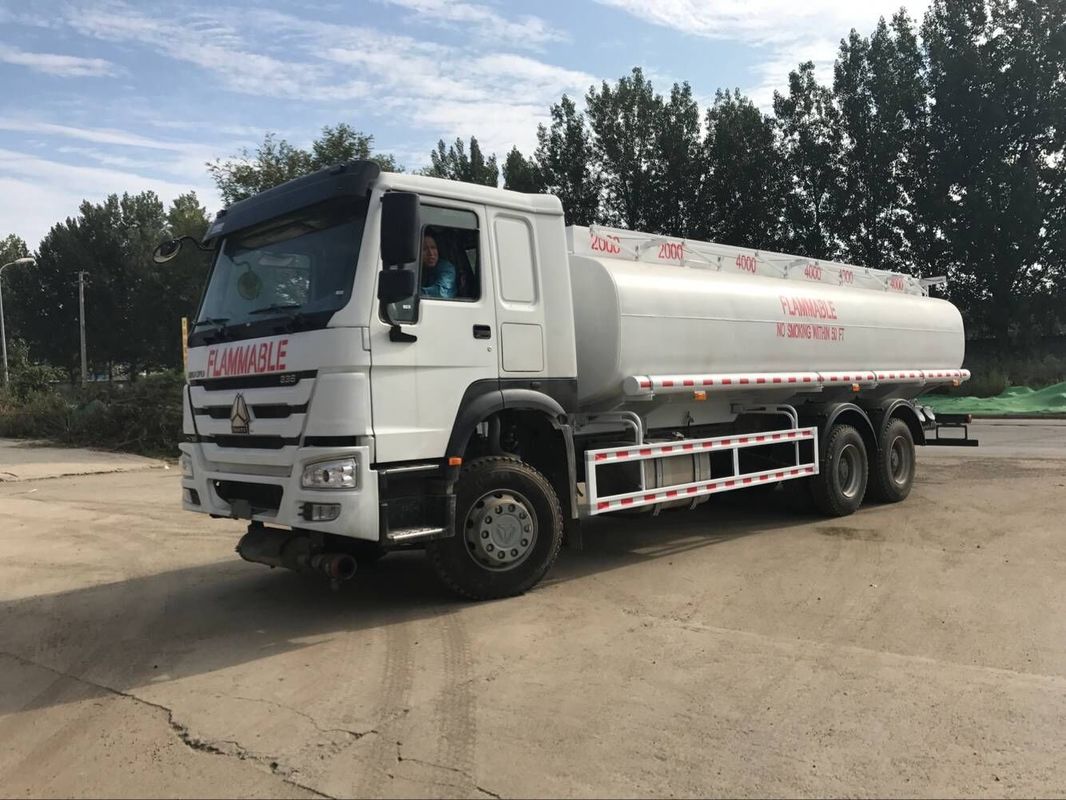

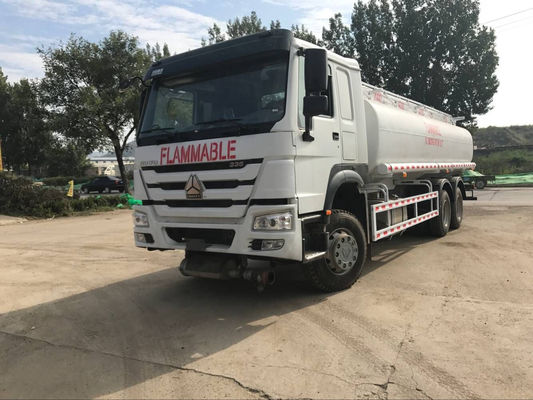

Fuel Delivery Truck Howo 6*4 20000 Liters Diesel Fuel Tanker Truck
Diesel Fuel Tanker Truck Advantages:
1. Tank material: We can provide carbon steel tanks, stainless steel tanks, manganese steel tanks, aluminum
tanks, steel with plastic (or rubber) tanks and plastic tanks.
2. Advanced welding: Tank body adopts an advanced automatic vertical welding technique and head arc butt
welding technology, as well as the whole-steel forming a composite.
3. High safety: Fuel tanker is equiped with active and passive emergency protection devices, to provide full
closure remote manipulation of materials handing functions. Equiped separators [Baffle] to prevent surging
of liquid towards bulk head.
4. Function: The tanker body is suit for loading light fuel oil, heavy oil, sulfuric acid, hydrochloric acid, nitric acid,
caustic soda hydrogen peroxide, alcohol, benzene, cooking oil and so on.
5. Oil pump: Gear pump, self-absorption (centrifuge) pump, chemical pump, heavy, oil pump and stainless
steel pump are optional.
6. Tank shape: Tank body can be designed to square round, round.
7. Refueling machine: The refueling machine we used are tax controled oiling machine with accurate figure of volume.
8. Optional: reading meter for outlet and inlet, self-discharge valve at rear or side of tank body, compartment
quantity according to the demand.
DIESEL FUEL TANKER TRUCK SPECIFICATIONS
| Tanker |
| Volume |
20000L |
| Thickness |
Tank body 5mm,end plate 6mm,Baffle plate:4mm. |
| Compartment |
3 compartments |
| Discharge valve |
3 pieces API discharge valve |
| Manhole cover |
3 pieces aluminum alloy Explosion proof manhole |
| Bottom valve |
3 pieces |
| Top of tank |
Folding handrail |
| Fire extinguisher |
2 pieces fire extinguisher |
| Option |
Pump |
| Refilling machine |
| Refueling gun, |
| Flow meter, |
| Chassis |
| Truck Model |
ZZ1257N4641W Sinotruk Howo Brand |
| Size |
10350x2496x3500 |
| Wheel base (mm) |
4600+1350 |
| Max speed(km/h) |
90 |
| Curb weight(kg) |
13540 |
| Loading Weight(kg) |
25000 |
| Engine |
Model |
WD615.69, water-cooled,four strokes |
| 6 cylinders in line,turbocharged |
| directly injection |
| Fuel type |
Diesel |
| Horse Power |
336HP |
| Emission |
EURO 2 |
| Transmission |
Model |
HW19710,10 forwards and 2 reverse |
| Brake system |
Service brake |
Dual circuit compressed air brake |
| Parking brake |
spring energy, compressed air operating on rear wheels |
| Steering |
Model |
ZF8118 hydraulic steering power assistance |
| Front axle |
HF7,drum type, Steering with double T-cross section beam |
| Rear axle |
ST16, 2 casting axle, 2x16 ton |
| Tyre |
295/80R22.5 11 pieces(include 1 spare tire) |
| Electrical system |
Battery |
2X12V/165Ah |
| Alternator |
28V-1500kw |
| Starter |
7.5Kw/24V |
| Cab |
HW76 cab(one sleeper, with air conditioner) |
|
