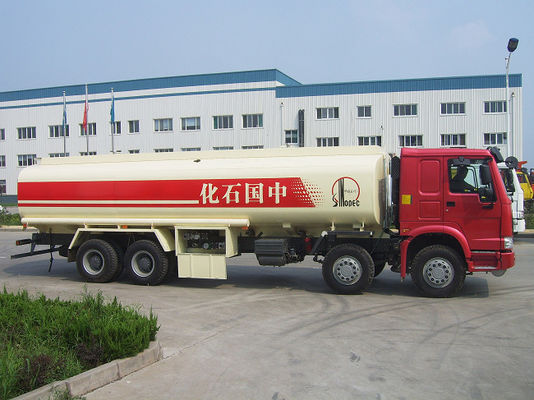

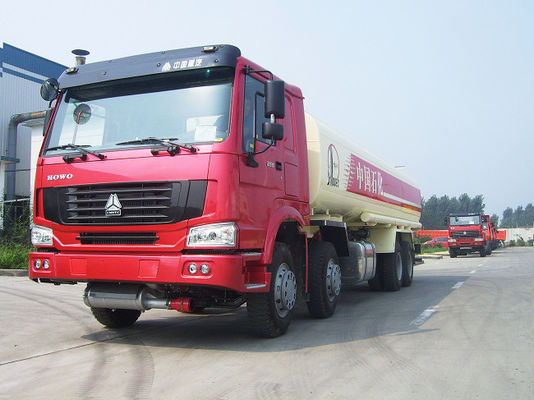

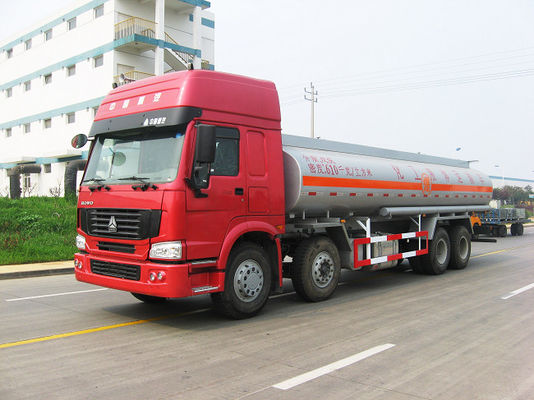

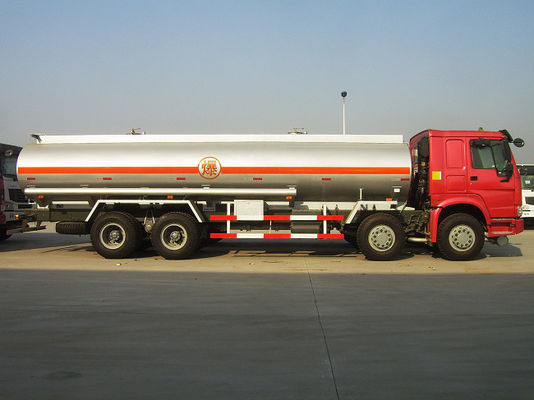

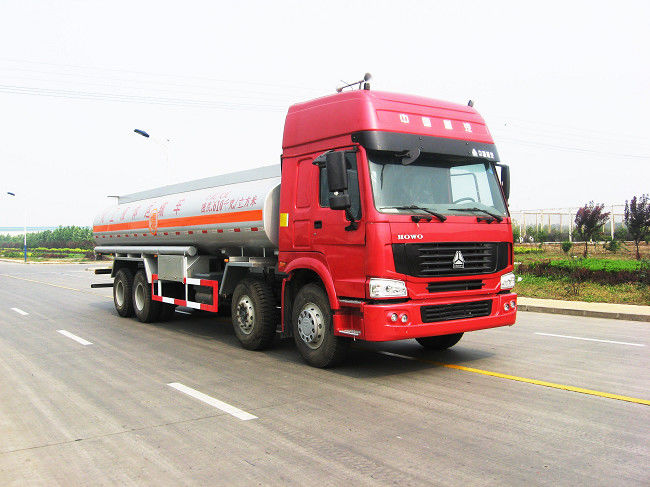

Heavy Duty 8x4 Big Capacity 30000 20000 Liter Fuel Tanker Trucks
Diesel Fuel Tanker Truck Features:
Diesel fuel tanker truck is widely used in oil industry for fuel transportation, refueling and storage, etc.
We provide various tanker truck with chassis like Dongfeng, FAW, Forland, Yuejin, JMC, JAC, Sinotruck howo,
Foton, Beiben, Shacman, Japan Chassis, Germany Chassis, etc.
The dimension of the tank is customisable. The color and LOGO of the tank is customizable.
The basic equipments are of valves, manhole, pipes, ladder, pump,dispenser, tool box,etc. For optional
equipments,baffles,water box,EU subsea valve,static electricity wire coil,gasoline vapor recovery unit,spill-free
alarm,bottom loading devices, etc. are available.
Materials for the tanker body include carbon steel, stainless steel, aluminum alloy, etc.
We can supply fuel tanker truck, fuel tanker trailer, fuel tank container, and fuel storage tank,etc.
DIESEL FUEL TANKER TRUCK SPECIFICATIONS
| 8x4 fuel tank truck |
| Truck brand |
Sinotruk HOWO |
| Driving type |
LHD,RHD |
| Over demesions(L*W*H) |
11990*2480*3550(mm) |
| Tank demesions (L*W*H) |
9250*2350*1600mm |
| Tank capacity(L) |
30000 |
| Approaching angle/Departure angle(°) |
16/12(°) |
| F/R track base(mm) |
1205/3485 (mm) |
| Curb weight(kg) |
11360(Kg) |
| Max speed(km/h |
90 |
| Transmission |
| Model |
HW19710,10 forwards and 2 reverse |
| Brake system |
| Service brake |
Dual circuit compressed air brake |
| Parking brake |
spring energy, compressed air operating on rear wheels |
| Auxiliary brake |
Engine exhaust brake |
| Steering system |
| Model |
ZF8098 |
| Other specification |
| Front axle |
HF7 |
| Rear axle |
ST16 |
| Color |
Optional |
| Tire |
11.00-20 / 12.00-20/ 295/80R22.5 |
| Tire quantity |
12+1 |
| Electrical system |
| Battery |
2X12V/165Ah |
| Alternator |
28V-1500kw |
| Starter |
7.5Kw/24V |
| Cab |
| HOWO76 cab with one sleeper and air conditioner |
|
