ISO 10 Cubic Meter 6x4 Concrete Cement Mixer Truck

Large Image : ISO 10 Cubic Meter 6x4 Concrete Cement Mixer Truck

Product Details:

Place of Origin:	CHINA
Brand Name:	HOWO
Certification:	CCC, ISO, CE
Model Number:	ZZ1257N3841W

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14000/unit-$18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	10-15 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30units per month

Contact Now

ISO 10 Cubic Meter 6x4 Concrete Cement Mixer Truck

Description

Product Name:	Used Concrete Mixer Truck	Drive Type:	6x4
Emission:	Euro 2	Dum Mixing Capacity:	10 Cubic Meter
Motor:	Eaton(USA Brand)	Tyre:	12.00R20
Highlight:	10m3 concrete cement mixer truck , 6x4 concrete cement mixer truck , Sinotruck Howo concrete mixing lorry

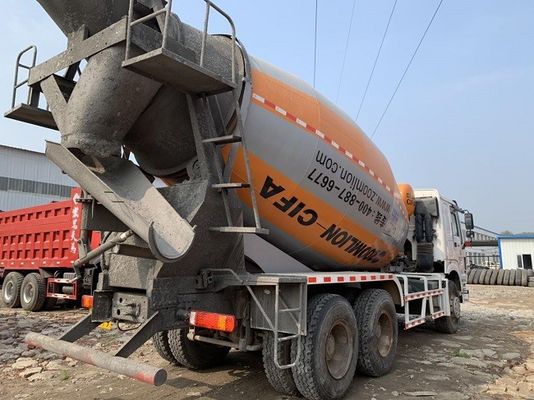

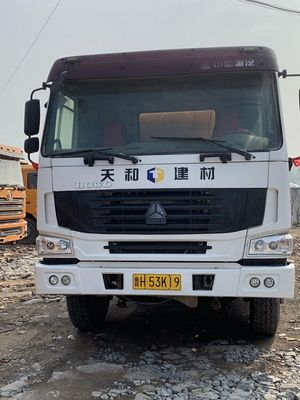

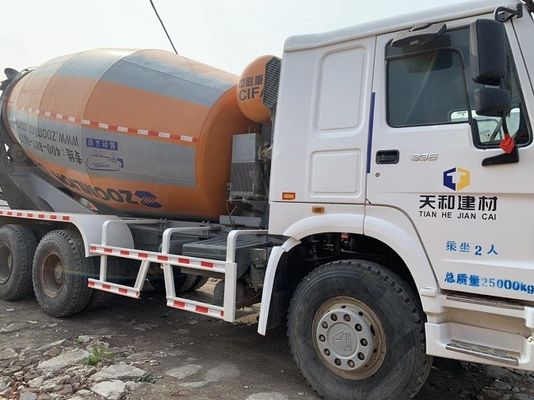

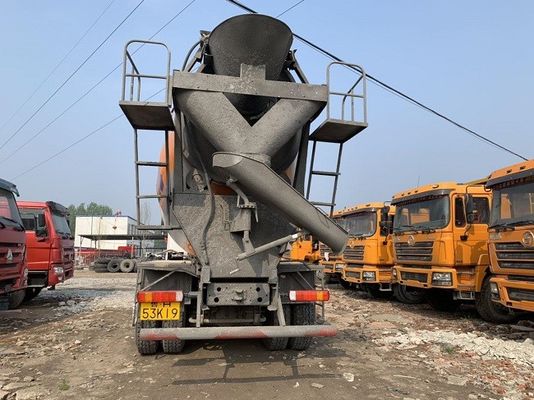

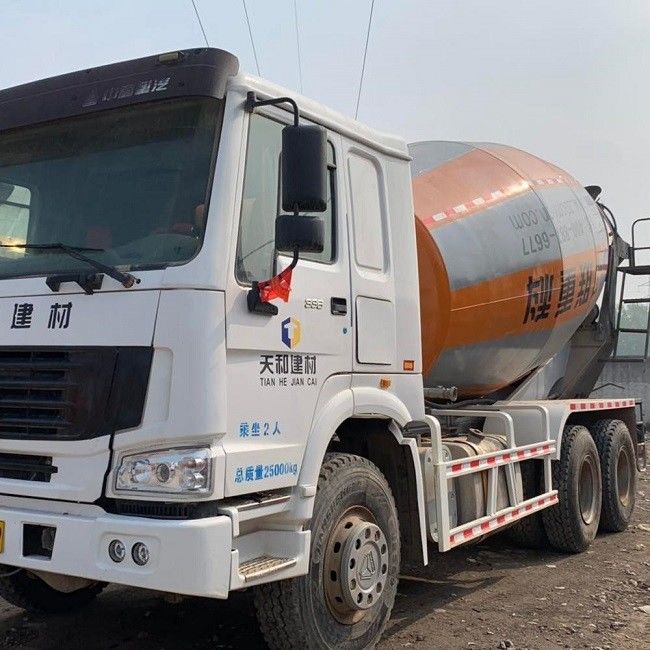

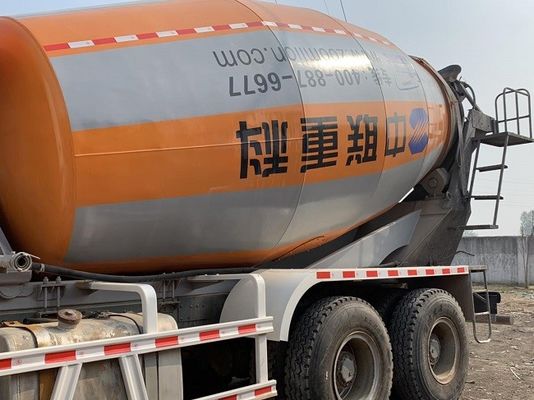

Used Sinotruck Howo 10 Cubic Meter 6x4 Concrete Cement Mixer Truck

Howo 6x4 10m3 Used Concrete Mixer Truck Working Mode:

Used howo concrete mixer truck is taking the power from the truck engine by power takeoff device. Take the

role of the power plant is by manipulating the power switch to the remove of engine power, hydraulic system

driven by mixing barrel, mixing barrel racing to the rotation during feeding and transportation, to facilitate feeding

and mixing of concrete, reverse rotation during discharging, cut off after work end connected to the engine's power.

PRODUCT SPECIFICATIONS

Chassis model	ZZ1257N3841W (Overall dimension: 8560x2496x3800mm)
Engine	WD615.47, 371hp, Euro II, In-line, six cylinders, two valves, supercharging inter-cooling, rear supercharger Displacement is 9.726L. Diesel fuel type, Max. Torque is 1350/1300-1600Nm/rpm.
Cabin	HW76, one sleeper, two seats with air-conditioner, safety belts with double locking mechanism, new face, exterior sun visor, equipped with high position metal bumper.
Clutch	∮430 diaphragm spring clutch, hydraulic control air power assisted.
Transmission	HW19710, 10 F and 2 R, manual type. Max.torque: 1390N.m
Drive Axle	HC16, double reduction (central reduction+hub reduction), speed ratio:standard 5.73, optional 4.8.
Front Axle	HF9, 9ton, drum brake
Chassis	Frame: U-profile parallel ladder frame with section of 300x80x8mm and reinforced sub-frame, all cold riveted cross member, Equipped with HW50 PTO
	Front suspension: semi-elliptic leaf springs, hydraulic telescopic double-action shock absorber and stabilizer
	Rear suspension: semi-elliptic leaf springs and bogie springs, spare wheel
	Fuel tank: 300 L capacity, with locking fuel cap
Steering	ZF8118, hydraulic steering with power assistance, LHD
Brake system	Service brake: dual circuit pneumatic brake, Parking brake:energy storage spring cutoff brake.Optional ABS and automatic slack adjust.
Tyre	12.00R20 Radial plus one spare tyre (11 units)
Mixing Tank	Effective tank volume is 10m3, speed of mixing barrel is 0-16r/min, mixing obliquity is 10°,capacity of water tank is 400L, Max. Dimension of hopper is 980mm
Other Specification	With Italian brand Bonfiglioli reduction gears, America brand Eton oil pump and motor
