Heavy Duty Machine Transport Lowbed Semi Trailer

Certification
China Qingdao Alston Motors Co., Ltd. certification
China Qingdao Alston Motors Co., Ltd. certification
Customer Reviews
The best quality trucks with reasonable price, i am so satisfied after received the used howo tipper trucks. Will order more in the future.

—— Mr.forson alex from Ghana

We are really glad to cooperate with your company. I ordered many trucks from several suppliers, you are the most precious partner i want to collaborate with!

—— Anthony Maisamari from Nigeria

I just received the used howo tractor, it's so amazing, just like new one from sinotruk! I couldn't wait for placing a new order! So satisfied with your service!

—— Rashid Omar from Tanzania

I'm Online Chat Now

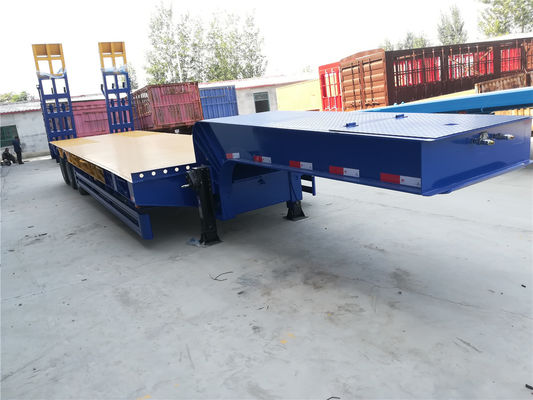

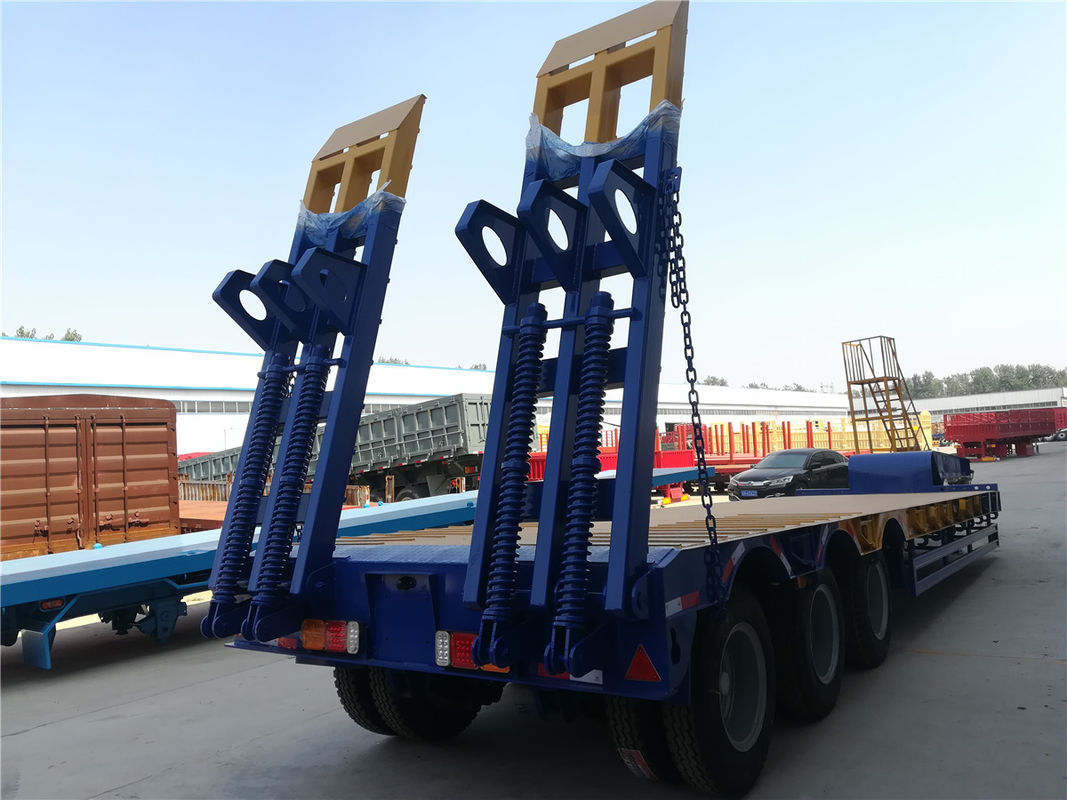

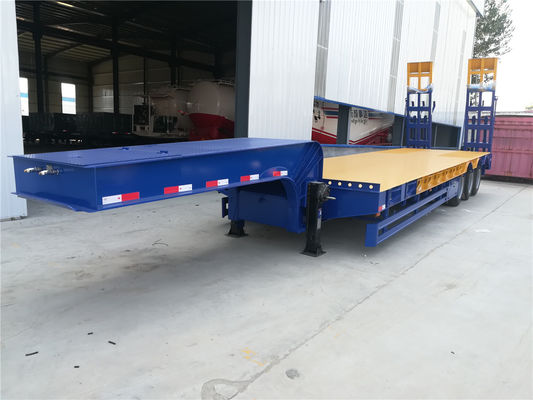

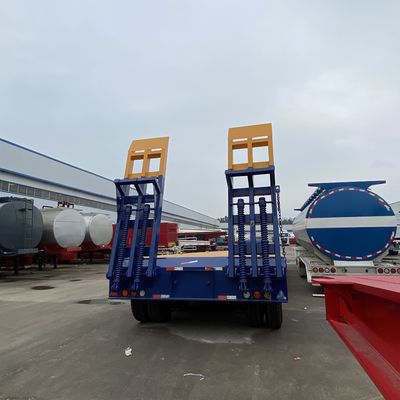

Heavy Duty Machine Transport Lowbed Semi Trailer

Heavy Duty Machine Transport Lowbed Semi Trailer
Heavy Duty Machine Transport Lowbed Semi Trailer Heavy Duty Machine Transport Lowbed Semi Trailer Heavy Duty Machine Transport Lowbed Semi Trailer Heavy Duty Machine Transport Lowbed Semi Trailer

Large Image :  Heavy Duty Machine Transport Lowbed Semi Trailer

Product Details:
Place of Origin: CHINA
Brand Name: ALSTON
Certification: CCC, ISO, CE
Model Number: ATM3316LBT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $12000/unit-$16000/unit
Packaging Details: Nude, Waxing before delivery
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 units per month

Heavy Duty Machine Transport Lowbed Semi Trailer

Description
Product Name: Lowbed Semi Trailer Type: Truck Trailer
Axle: 13ton Fuwa Brand Landing Gear: JOST Brand Two Speed
Kingpin: JOST 2"(50mm)or3.5"(90mm) Tyre: 12R22.5
Loading Weight: 60000kg
Highlight:

60000kg Lowbed Semi Trailer

,

CCC Lowbed Semi Trailer

,

60t heavy duty lowboy trailer

 Lowbed Semi Trailer Heavy Duty Machine Transport Low bed Semi Trailer

Lowbed Semi Trailer Features:

Main beam and side beam are with "I" shape high strengh steel. More durable than normal trailer steel, ensure
lowbed semi trailer better stability and handle bad road conditions.

Heavy duty type ramp: manganese plate butt welding, which ensure ramp support the heavy duty marchine safely.

Stability when loading heavy duty machine. Our low bed trailer can be equipped with extra legs on the rear of trailer,
which ensures loading machine process more safely.

Lowbed semi trailer is very popular in Africa. It is for excavator and other earth equipments transportation, and
we can design the capacity according to your requirements. Our Standard dimension is 13 meters long and the
cargo loading length is 9 meters, which is customizable. We have Mechancial ladder/Hydraulic ladder/ Hydraulic
folding ladder for your choice;
Lowbed semi trailer specifications can be customized according to your request, like axles, suspensions, etc.,
all can be chosen by yourself. Our factory produces strong trailers for customers , which can meet clients
transport requirements ;

                        LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)13000x3000x1650mm
Working Deck Dimension(mm)9000x3000x1350mm
Platform thickness(mm)4mm Diamond Plate
Main Beam“H”main beam design,Q345B carbon steel,
the height of the beam is 500 mm,
upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase7,650mm+1,310mm+1,310mm+1,310mm
Payload60,000kg
Tare weight9,000kg
G.V.W.R.69,000kg
FunctionTo transport bulk goods or heavy equipment like loader or excavator
Running System
Axle13Ton, ZY brand optional FUWA brand,
one hundred fifty thousand Kilometers no need maintenance
Axle NumberThree
Tire11.00R20, 12 pcs Taitong brand
Rim8.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension systemCommon Mechanical Suspension
Steel Spring10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical SystemChinese standard 24V lighting system
Brake system:Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber6 units T30/30 spring brake chambers
Emergency relay valveWabco relay valve
Traction/King Pin2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing GearZhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location

Heavy Duty Machine Transport Lowbed Semi Trailer 0

Container

Heavy Duty Machine Transport Lowbed Semi Trailer 1

Ro-Ro Ship

Heavy Duty Machine Transport Lowbed Semi Trailer 2

Bulk Ship

Heavy Duty Machine Transport Lowbed Semi Trailer 3
Heavy Duty Machine Transport Lowbed Semi Trailer 4
Heavy Duty Machine Transport Lowbed Semi Trailer 5

PRODUCTION

Heavy Duty Machine Transport Lowbed Semi Trailer 6
