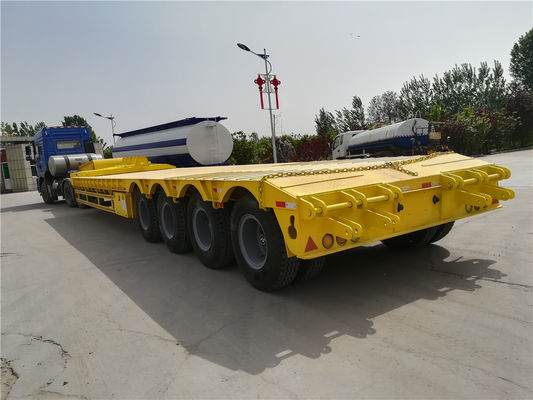

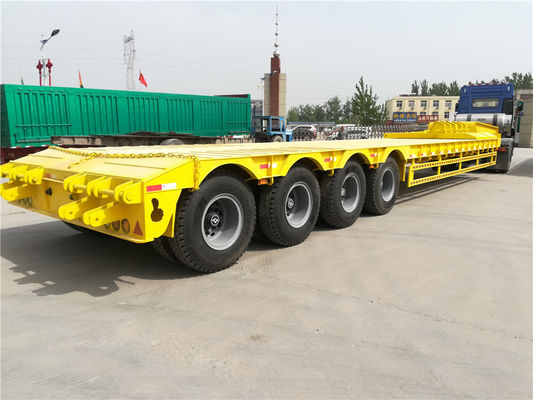

Low Platform 60-100 Tons 3 4 Axles Gooseneck Lowboy Lowbed Semi Trailer
Lowbed Semi Trailer Features:
4 axle lowbed semi trailer is usually used to transport heavy tractors, buses, special vehicles, rail vehicles,
mining machinery, forestry machinery, engineering machinery, such as excavators, bulldozers, loaders,
cranes, etc. and other heavy goods. The center of gravity is lower, there will be more stability and safety.

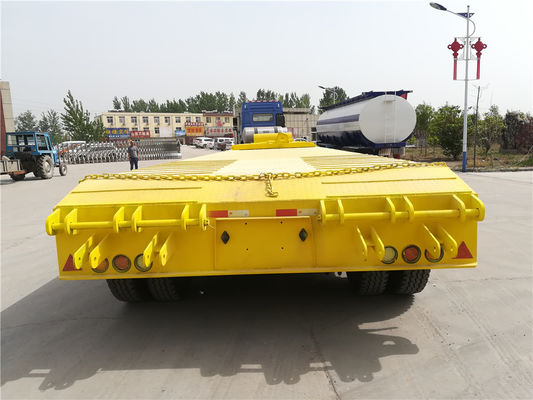

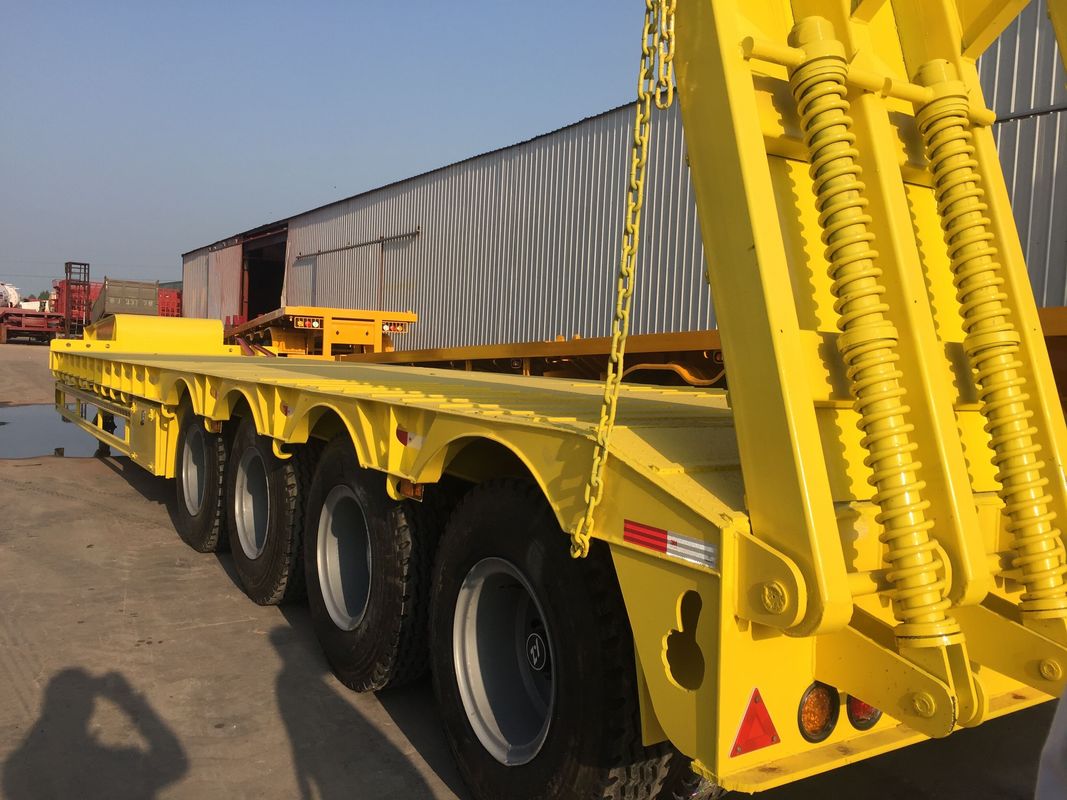

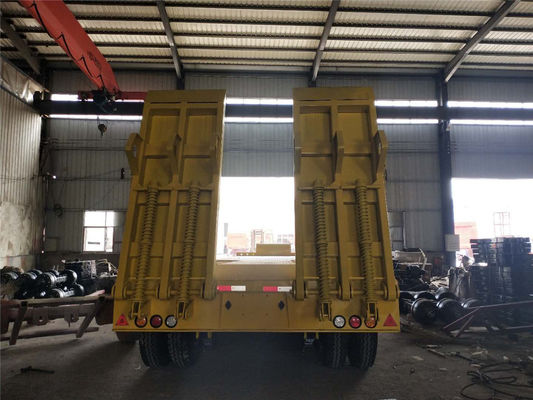

When loading mechanical equipment onto a lowbed trailer, it is usually loaded from the rear end of the
semi trailer, by moving the mechanical equipment from the rear wheel shelf or by removing the wheels,
and then fixing the mechanical equipment to the lowbed trailer.
Our 4 axle lowbed semi trailer is made of high quality steel, advanced technology and strict production process.
The structure of lowbed trailer is reasonable, the performance is reliable, the operation is simple and the

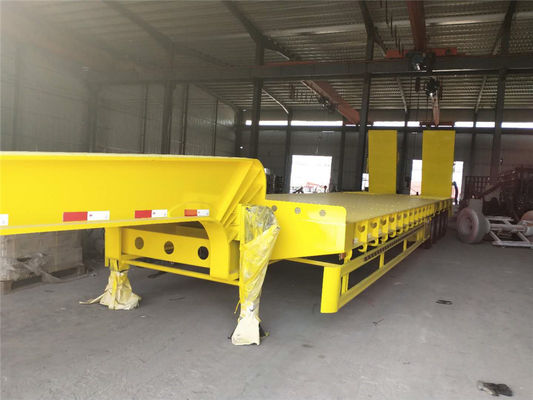

appearance is beautiful. We design thicken gooseneck to ensure the trailer long life service for your transport business.
4 axle lowbed semi trailer can load 40-100tons heavy duty. Customized loading deck dimension depends on
your transport demand. Heavy axles, thicken suspension and durable tires suit for rough road conditions in Africa.
LOWBED SEMI TRAILER SPECIFICATIONS
| Dimension and Weight | | Overall Dimension(mm) | 13000x3000x1650mm | | Working Deck Dimension(mm) | 9000x3000x1350mm | | Platform thickness(mm) | 4mm Diamond Plate | | Main Beam | “H”main beam design,Q345B carbon steel, | | the height of the beam is 500 mm, | | upper plate is 16mm,down plate is 18mm, middle plate is 10 mm. | | Wheelbase | 7,650mm+1,310mm+1,310mm+1,310mm | | Payload | 60,000kg | | Tare weight | 9,000kg | | G.V.W.R. | 69,000kg | | Function | To transport bulk goods or heavy equipment like loader or excavator | | Running System | | Axle | 13Ton, ZY brand optional FUWA brand, | | one hundred fifty thousand Kilometers no need maintenance | | Axle Number | Four | | Tire | 11.00R20, 16 pcs Taitong brand | | Rim | 8.0*22.5 steel disc wheel, 10 holes ISO, 16 pcs | | Suspension system | Common Mechanical Suspension | | Steel Spring | 10/10/10 leaf spring with 90mm(W) *13mm(thickness) | | Electrical System | Chinese standard 24V lighting system | | Brake system: | Dual line pneumatic brake, SAE hose and connector,optional ABS | | Brake air chamber | 8 units T30/30 spring brake chambers | | Emergency relay valve | Wabco relay valve | | Traction/King Pin | 2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster | | Landing Gear | Zhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location | |
|
