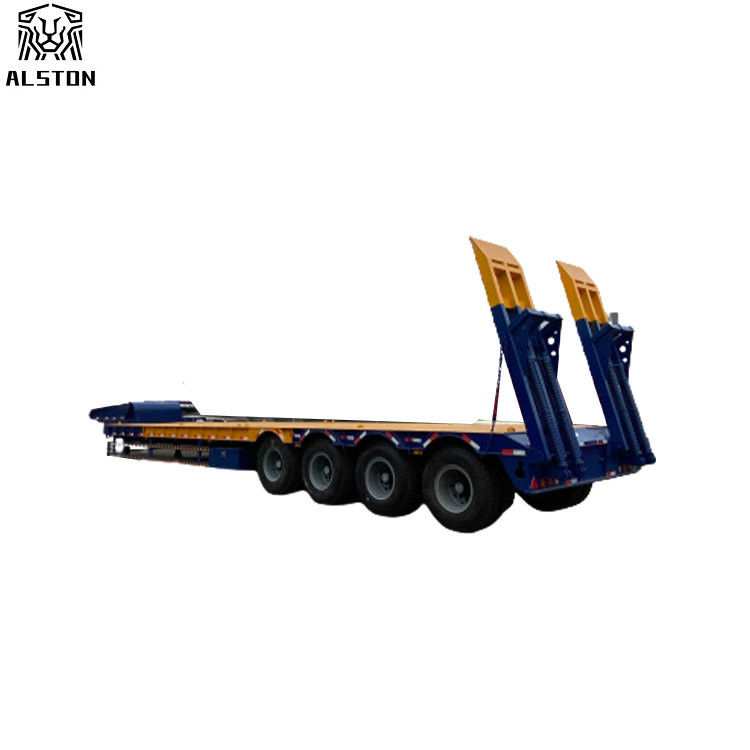

100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer

Large Image : 100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316LBT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$12000/unit-$18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer

Description

Product Name:	Lowbed Semi Trailer	Type:	Truck Trailer
Suspension:	Mechanical Suspension	Axle:	13ton Fuwa Brand
Dimension:	13000x3000x1650mm	Loading Weight:	100 Tons
Highlight:	100 Ton Lowbed Semi Trailer , Gooseneck Lowbed Semi Trailer , 4 axle lowboy trailer

4 Axles 100 Tons Heavy Duty Gooseneck Platform Deck Lowbed Semi Trailer

Lowbed Semi Trailer Features:

Lowbed semi trailers are incredibly versatile. Various industrial sectors can use this equipment to facilitate

the movement of heavy and over-width cargo. Heavy duty machinery which needs an extra width for loading

on this trailer. As per your requirements and specifications, we can modify the trailer’s structure for extra space.

The stability factor of lowbed semi trailer makes it a popular piece of equipment in the marketplace. This trailer’s

consistent stability renders it suitable for everyday use as it keeps the cargo stable even when it is mobile.

It is used for transporting heavy cargo and for tracking purposes. Lowbed semi trailers are heavy-duty vehicle.

It can easily transport heavy, comprehensive, and tall cargo from one place to another. The strength can be

maximized by increasing the width of the support base. This trailer’s cargo platform is positioned to lower the

cargo centre’s height, hence increasing the stability of the loaded goods during transportation.

LOWBED SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)	13000x3000x1650mm
Working Deck Dimension(mm)	9000x3000x1350mm
Platform thickness(mm)	4mm Diamond Plate
Main Beam	“H”main beam design,Q345B carbon steel,
	the height of the beam is 500 mm,
	upper plate is 16mm,down plate is 18mm, middle plate is 10 mm.
Wheelbase	7,650mm+1,310mm+1,310mm+1,310mm
Payload	60,000kg
Tare weight	9,000kg
G.V.W.R.	69,000kg
Function	To transport bulk goods or heavy equipment like loader or excavator
Running System
Axle	13Ton, ZY brand optional FUWA brand,
Axle	one hundred fifty thousand Kilometers no need maintenance
Axle Number	Four
Tire	11.00R20, 16 pcs Taitong brand
Rim	8.0*22.5 steel disc wheel, 10 holes ISO, 16 pcs
Suspension system	Common Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,optional ABS
Brake air chamber	8 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
Traction/King Pin	2” and 3.5” removable Kingpin, bolted in type 500mm from the front face of the front bolster
Landing Gear	Zhenhua brand 28ton external two speed telescopic manual operation. 2,500mm behind the kingpin location
Landing Gear

100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer 0

Container

100 Ton Lowbed Semi Trailer , Gooseneck 4 Axle Lowboy Trailer 1

Ro-Ro Ship

Bulk Ship
