Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Large Image : Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316FTT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14000/unit-18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Description

Product Name:	Fuel Tanker Semi Trailer	Size:	11500x2500x3900mm
Suspension:	Mechanical Suspension	Landing Gear:	JOST Brand, Two Speed
Kingpin:	JOST 2"(50mm)or3.5"(90mm)	Material:	Carbon Steel, Aluminium
Highlight:	Fuel Tanker Semi Trailer , Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer

Fuel Tanker Semi Trailer 3 Axles Fuel Tanker Crude Oil Tank Semi Trailer

Fuel Tanker Semi Trailer Description and Advantages:

Our Fuel Tanker Semi Trailer adopt advanced design concept. We also can produce the tanker trailers for
different liquid like fuel, petrol, water, palm oil etc. To make sure the safety, our standard trailers adopt the
Bottom Emergency valves. This can help the tankers to prevent oil leakage, when emergency happens.
ALSTON Fuel tanker trailers major parts and components of the trailer are processed by advanced equipment.
Also we adopt world famous brand of parts, like JOST, WABCO braking valve etc.

1. Strong Steel structure
Steel frames are built with top-class hot rolled or rolled steel plate, automatically welded longitudinal beam
and adopting advanced sanding and painting process as preliminary treatment.
2. Polyurethane combination paint
The tanker is shot blasted with primer once and polyurethane combination paint twice. Strong resistance
and strong adhesion.
3. Rational analysis design
Adhere to the concept of even stress on the trailer frame. 42 sturdy rib design to ensure the safety and carrying
capacity of the trailer.
4. European System
Mature and reliable European system Explosion-proof manhole Anti-overflow Oil and gas recovery Bottom loading.

FUEL TANKER SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	42000L
Thickness(mm)	Material Q235 carbon steel
	Tank body and separate compartment plate: 5mm
	Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*14000L )

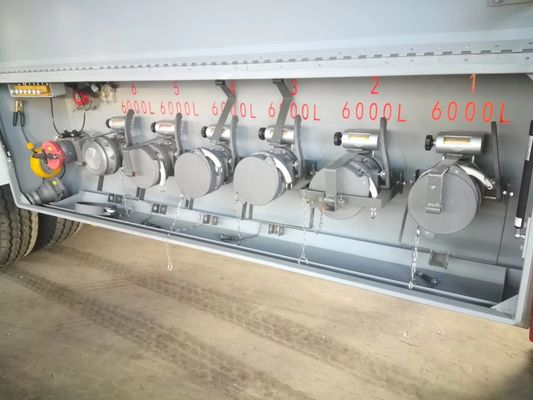

Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand

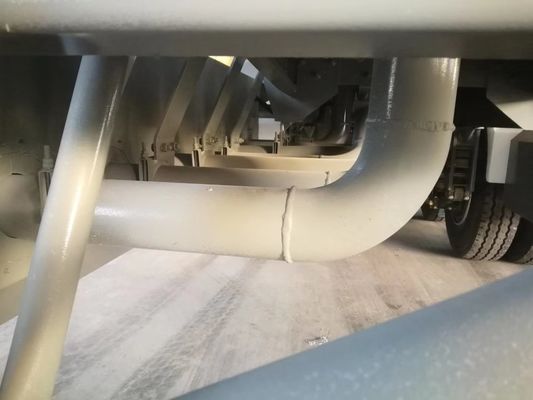

Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer 0

Flat Rack Container

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer 1

Container

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer 2

Bulk Ship

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer 3

Ro-Ro Ship

Mechanical Suspension Fuel Tanker Semi Trailer , Crude Oil Tanker Trailer 4

Our Workshop:

Flaw Detection of Tank Body
