Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity

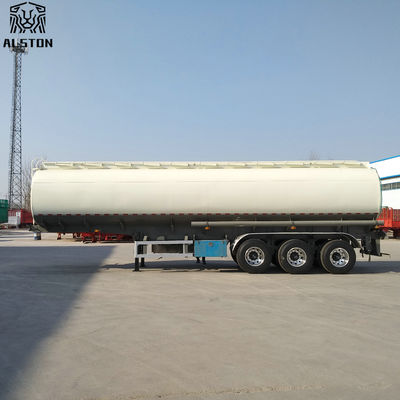

Large Image : Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316FTT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14000/unit-18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity

Description

Product Name:	Fuel Tanker Semi Trailer	Loading Capacity:	35000 Liters
Axle:	3x13ton	Landing Gear:	JOST Brand, Two Speed
Kingpin:	JOST 2"(50mm)or3.5"(90mm)	Tyre:	12R22.5
Highlight:	3x13t Fuel Tanker Semi Trailer , 35000L Fuel Tanker Semi Trailer , Large Capacity tractor trailer tanker

3-Axle Carbon Steel Alloy Material Large Capacity Fuel Tanker Trailer

Fuel Tanker Trailer Description:

Fuel tanker semi trailer is very popular in Africa for Petrol, diesel, palm transport business. It can help many

customers start fuel tank transport. The capacity of fuel tanker can be designed upon customers’ request.

We can design the specifications, include the discharging valve, discharging pipe, axles, tires and so on.

You also can choose by yourself. Regarding discharging valve, there are API valve and common one.

The API discharging valve can load and unload the goods, while the common one only can unload the goods.

Valve pipe can be designed for you as well. Usually ,We can provide 1 to 7 even 10 valves for you. If you have

requirements on the valve, we also can design different types for you.

FUEL TANKER SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	42000L
Thickness(mm)	Material Q235 carbon steel
	Tank body and separate compartment plate: 5mm
	Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*14000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 0

Flat Rack Container

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 1

Container

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 2

Bulk Ship

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 3

Ro-Ro Ship

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 4

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 5

Our Workshop:

Carbon Steel 35000L Fuel Tanker Semi Trailer Large Capacity 7
