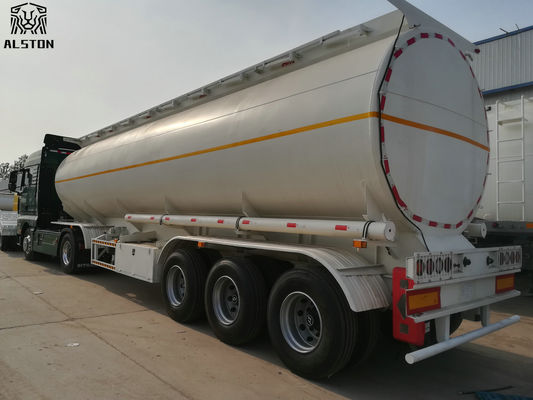

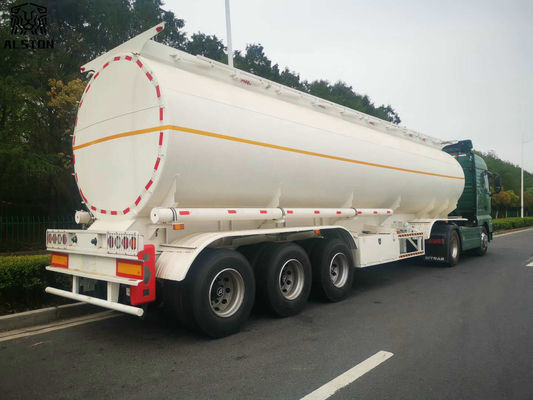

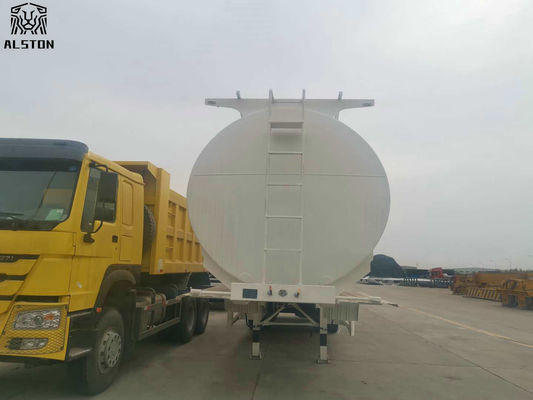

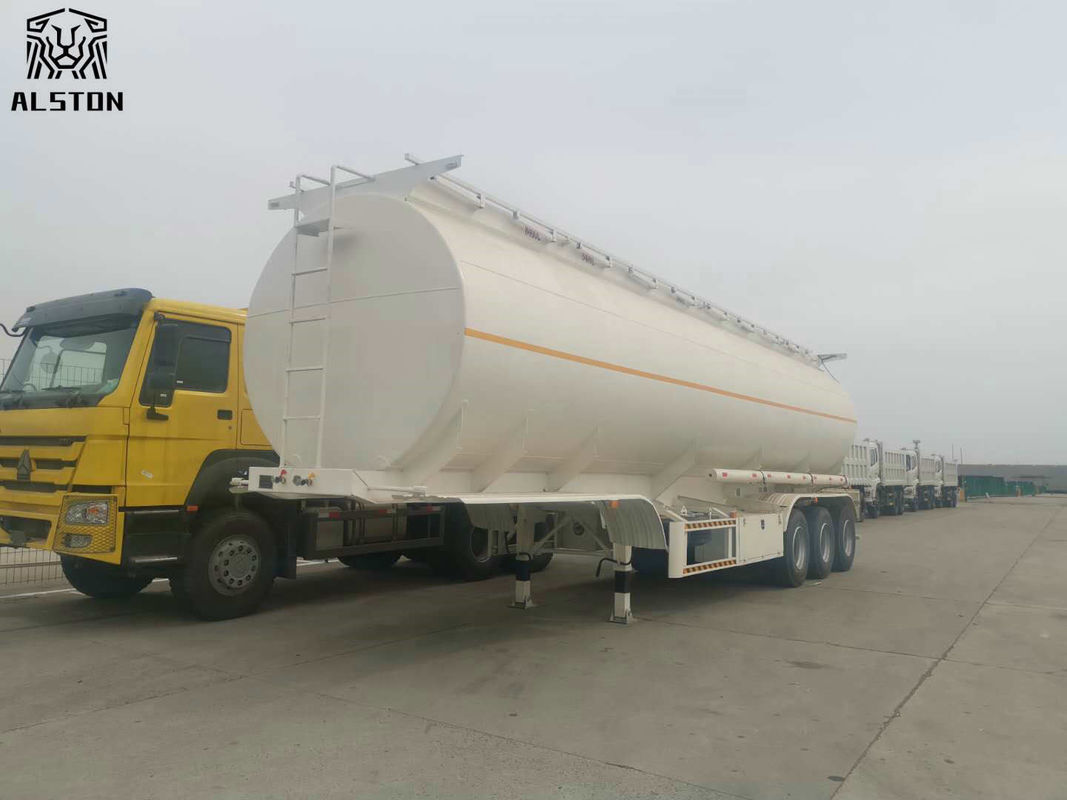

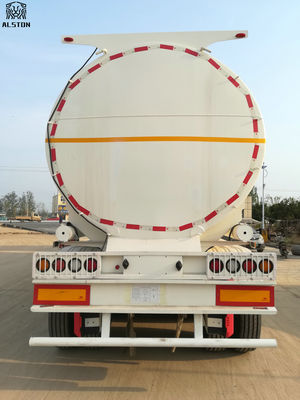

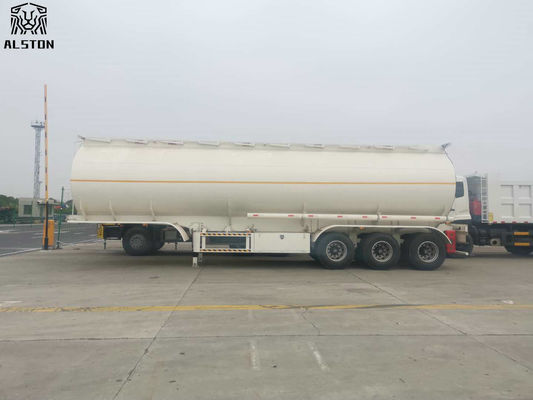

35000 Liters Fuel Tanker Semi Trailer , 3x13T Tri Axle Tanker Trailer

Large Image : 35000 Liters Fuel Tanker Semi Trailer , 3x13T Tri Axle Tanker Trailer

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316FTT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14000/unit-18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

35000 Liters Fuel Tanker Semi Trailer , 3x13T Tri Axle Tanker Trailer

Description

Product Name:	Fuel Tanker Semi Trailer	Size:	11500x2500x3900mm
Loading Capacity:	35000 Liters	Axle:	3x13ton
Kingpin:	JOST 2"(50mm)or3.5"(90mm)	Tyre:	12R22.5
Highlight:	35000 Liters Fuel Tanker Semi Trailer , 3x13T Fuel Tanker Semi Trailer , 3x13T Tri Axle Tanker Trailer

Fuel Trailer Tanker 35000 Liters Fuel Tank Trailer Oil Tanker Trailer

Fuel Tanker Semi Trailer Description:

Our fuel tanker trailer choose Q345B carbon high-tensile steel material, welded by automatic Submerged-Arc

processes. According to clients' requirements, we can customize different volumes and compartments for

fuel tanker semi trailers.

Production Process
1. Steel auto cutting.
2. End plate bulging machine makes end plate more accurate.
3. Canning machine makes tanker body more beautiful and tight.
4. Tanker body auto welding.
5. Chassis welded by experienced workers.
6. Dust-free painting.

FUEL TANKER SEMI TRAILER PARAMETERS

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	42000L
Thickness(mm)	Material Q235 carbon steel
	Tank body and separate compartment plate: 5mm
	Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*14000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve
