3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy

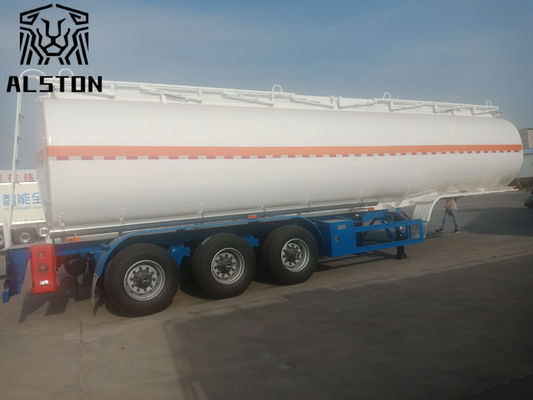

Large Image : 3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316FTT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$16000/unit-20000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy

Description

Product Name:	Fuel Tanker Semi Trailer	Size:	11500x2500x3900mm
Loading Weight:	40000kg	Suspension:	Mechanical Suspension
Axle:	3x13ton	Landing Gear:	JOST Brand, Two Speed
Brake System:	WABCO Valve	Kingpin:	JOST 2"(50mm)or3.5"(90mm)
Tyre:	12R22.5	Material:	Aluminium
Highlight:	3 Axles 40000 litre fuel tanker , 40000 litre fuel tanker Trailer , 13000 Gallon aluminum tanker trailer

3 Axles 13000 Gallon 40000L Aluminum Alloy Fuel Transfer Trailer

Fuel Tanker Semi Trailer Description:

1. Fuel tank semi trailers is applicable for the transportations of gasoline, Kerosene, Diesel Oil, Vegetable Oil,
Edible Oil, Heavy Oil, Coal Tar and Non-Oil Products such as Alcohol, Aldehyde, Benzene, Ether Liquid Substances.
2. We can manufacture the capacity according to your needs from 20CBM to 60CBM.
3. The axles can be FUWA/BPW/ZY with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanical suspension (leaf spring suspension), bogie suspension,etc
5. We provide the whole color range for your choice.
6. The package will be nude, wax-coating.
7. There four shipping methods to be chosen. Flat Rack, Ro-Ro, Bulk Carrier, Container.
8. The delivery time will be within 30 days after the dopisit and the drawing were confirmed.
9. All the products provide 12 months warranty from the delivery date.
10. All the spare parts will have the Free-Change within 12 months.

FUEL TANKER SEMI TRAILER SPECIFICATIONS

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	42000L
Thickness(mm)	Material Q235 carbon steel
	Tank body and separate compartment plate: 5mm
	Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*14000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy 0

Flat Rack Container

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy 1

Container

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy 2

Bulk Ship

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy 3

Ro-Ro Ship

3 Axles 13000 Gallon 40000 Litre Fuel Tanker Aluminum Alloy 4
