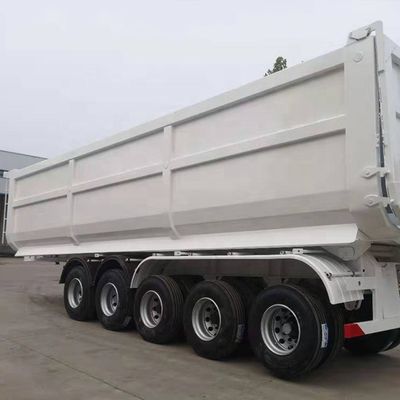

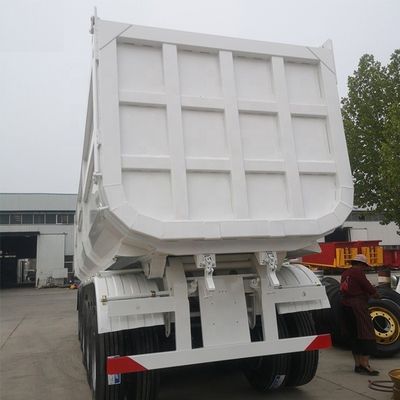

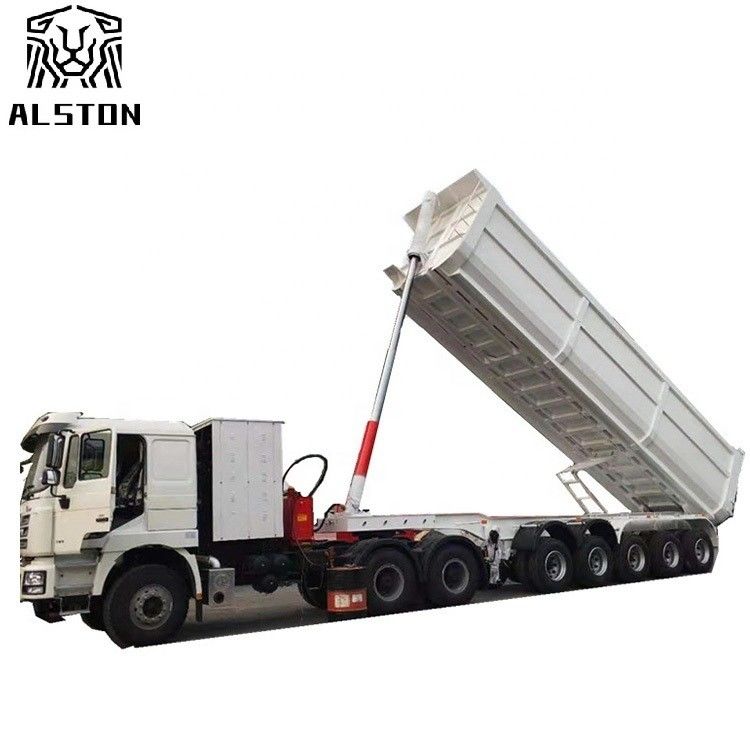

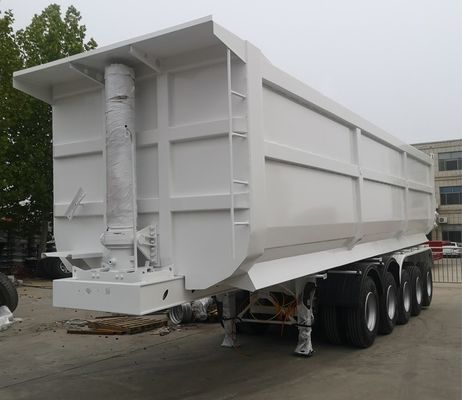

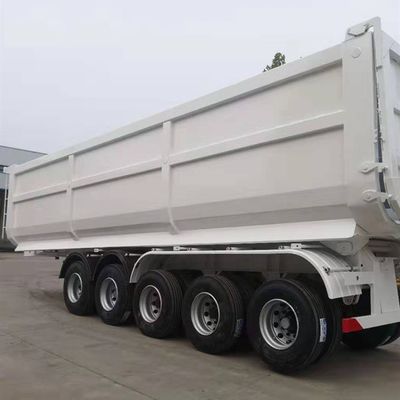

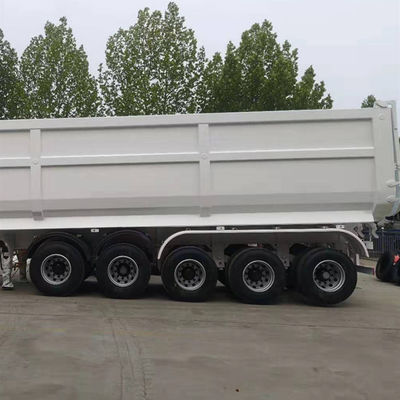

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension

Large Image : 5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316DT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$18000-$28000
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension

Description

Product Name:	Dump Trailers	Suspension:	Mechanical Suspension
Axle:	5 Axles	Landing Gear:	JOST Brand Two-speed
Brake System:	WABCO Valve	King Pin:	2"(50mm)or3.5"(90mm) JOST
Highlight:	CCC semi trailer end dump truck , 80T semi trailer end dump truck , white 5 axle dump trailer

Dump Trailer 5 Axles 80ton Tipper Trailer Rear Dump Truck Semi Trailer

Rear Dump Trailers Features:

1. Rear dump trailers adopt the method of rolled-over and self-dumping after rolled-over, which can effectively

improve transport efficiency of the loader to transport loose and scattered goods.
2. The frame and rail of tipper semi trailers are welded with high quality manganese plates. The bucket has

dustpan type and rectangle type, which are with high strength, strong lifting force, stiffness, toughness, strong

bearing capacity, no permanent deformation.
3. Sophisticated technology: the main components are processed by advanced equipment, the longitudinal

beam is fully automatic submerged arc welding, and the wheel shaft and steel spring are precisely assembled

by the assembly machine.

REAR DUMP TRAILERS SPECIFICATIONS

	Model	5 axles 80ton Rear Dump Trailer
	Function	Transport sand, stone, gravel
Dimension
	Overall Size (L×W×H)mm	9600×2550×3860mm
	Inner Size (L×W×H)mm	8300×2330×2000mm
	Wheel base	6870+1310+1310mm
Weight
	Payload	68,000kg
	Tare weight	Approx12,000kg
	G.V.W.R.	Approx 80,000kg
Body details
	Main beam	Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.
	Body thickness	6mm
	Bottom thickness	8mm
	Hydraulic System	Full set of HYVA Hydraulic System 202
Frame
	Axle	heavy duty, 5×13Ton capacity, FUWA brand
	Suspension	Leaf spring suspension, 90mm×16mm×10pcs
	Tire	12R22.5 20units Taitong Brand
	Kingpin	50mm/90mm removable
	Landing gear	Yahua brand, 28ton, double speed, heavy duty
	Tool box	1pcs
	Spare wheel carrier	2pcs

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension 0

Flat Rack Container Bulk Ship

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension 1

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension 2

5 Axle 80T Semi Trailer End Dump Truck Mechanical Suspension 3
