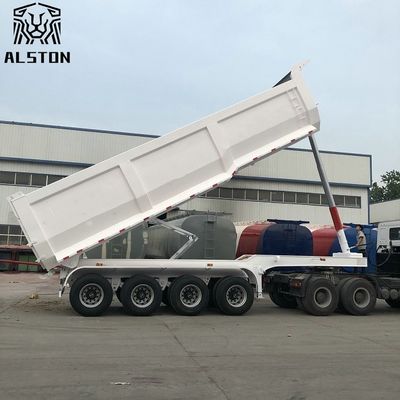

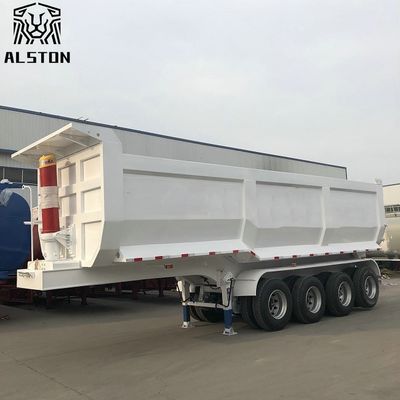

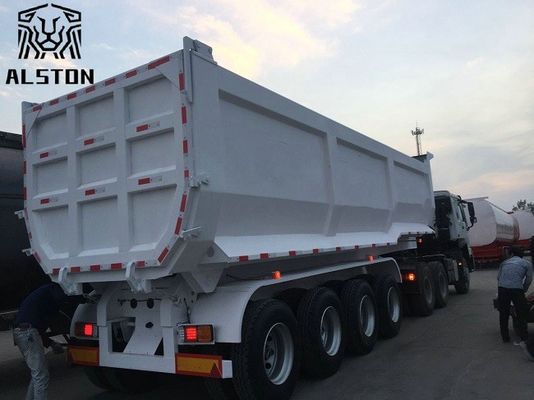

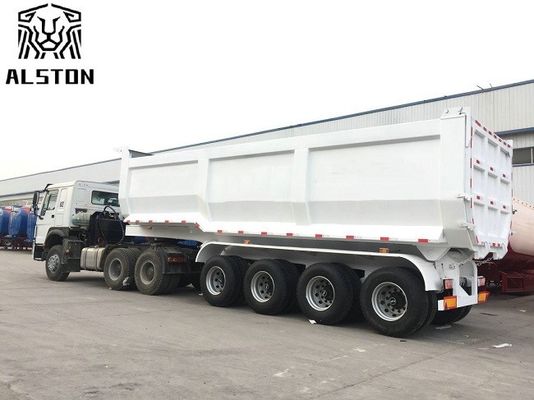

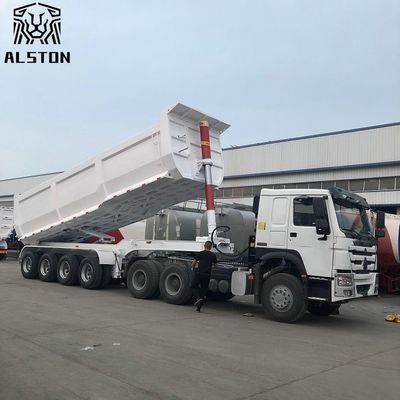

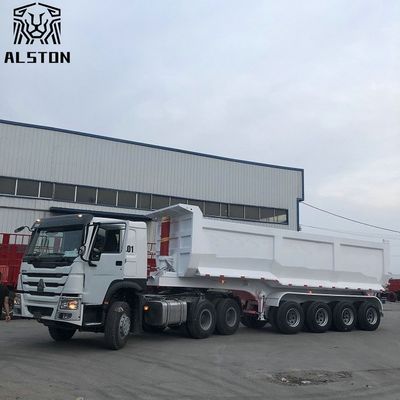

Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type

Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type

Large Image :  Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type

Product Details:
Place of Origin: CHINA
Brand Name: ALSTON
Certification: CCC, ISO, CE
Model Number: ATM3316DT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $16000-$25000
Packaging Details: Nude, Waxing before delivery
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 units per month
Contact Now

Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type

Description
Product Name: Rear Dump Trailers Type: Truck Trailer
Suspension: Mechanical Suspension Axle: 4 Axle
Brake System: WABCO Valve Tyre: 12R22.5
Dimension: 9600x2550x3860mm Loading Capacity: 50 Tons
Highlight:

ISO 4 axle end dump trailers

,

50T 4 axle end dump trailers

,

U Type quad axle dump trailer

Hydraulic Cylinder 4 Axles U Type 50 Tons End Dump Trailer Tipper Trailer

ALSTON Rear Dump Trailers Advantages:

Our heavy duty rear dump trailers adopt the method of back-turning self-unloading, which can effectively
improve the transportation efficiency of the bulk unloading of bulk goods by the loader.
The frame and the hydraulic dump trailer’s longitudinal beam are welded with high-quality manganese
plates, and the cargo box has two types of dustpan and rectangular. The hydraulic rear dump trailers are
with high strength, strong lifting force, good rigidity and toughness, strong bearing capacity and no deformation.

The dump truck trailer is suitable for the transportation of bulk and bulk goods such as coal, ore, and building
materials. Dump truck trailers, also known as hydraulic dump trailers, are composed of automobile chassis,
hydraulic lifting mechanism, power take-off device and cargo compartment.

                            REAR DUMP TRAILERS SPECIFICATIONS

 Model3 axle 25cbm Rear Dump Trailer
 FunctionTransport sand, stone, gravel
Dimension
 Overall Size (L×W×H)mm9600×2550×3860mm
 Inner Size (L×W×H)mm8300×2330×2000mm
 Wheel base6870+1310+1310mm
Weight
 Payload68,000kg
 Tare weightApprox12,000kg
 G.V.W.R.Approx 80,000kg
Body details
 Main beamMaterial Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.
 Body thickness6mm
 Bottom thickness8mm
 Hydraulic SystemFull set of HYVA Hydraulic System 202
Frame
 Axleheavy duty, 4×13Ton capacity, FUWA brand
 SuspensionLeaf spring suspension, 90mm×16mm×10pcs
 Tire12R22.5 16units Taitong Brand
 Kingpin50mm/90mm removable
 Landing gearYahua brand, 28ton, double speed, heavy duty
 Tool box1pcs
 Spare wheel carrier2pcs


Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 0

Flat Rack Container                                        Bulk Ship

Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 1
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 2
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 3
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 4
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 5
Hydraulic Cylinder 50T 4 Axle End Dump Trailers U Type 6
