Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter
Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter

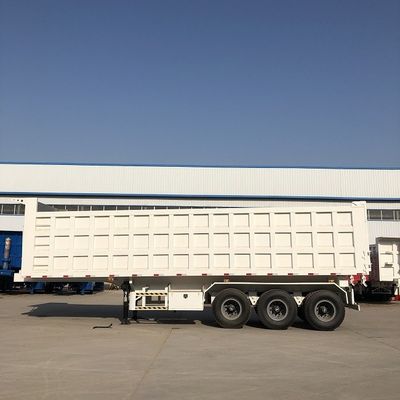

Large Image :  Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter

Product Details:
Place of Origin: CHINA
Brand Name: ALSTON
Certification: CCC, ISO, CE
Model Number: ATM3316DT
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $16000-$25000
Packaging Details: Nude, Waxing before delivery
Delivery Time: 15-30 working days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 30 units per month
Contact Now

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter

Description
Product Name: Rear Dump Trailers Brake System: WABCO Valve
King Pin: 2"(50mm)or3.5"(90mm) JOST Tyre: 12R22.5
Dimension: 9600x2550x3860mm Loading Capacity: 30 40 Cubic Meters
Highlight:

40m3 Rear Dump Trailers

,

Rear Dump Trailers 3 4 Axle

,

4 Axle end tipper trailer

   Trailers 3 4 Axle 35 40 Cubic Meter Dump Tipping Tipper Semi Trailer



Rear Dump Trailers Description:



3 Axles Rear dump trailers dimension can be customized. We exported 20 Cubic Meters, 25 Cubic Meters,

30 Cubic Meters, 40 Cubic Meters tipper trailers before. And we can design the Cubic Meters according to your

transport tonnage. Regarding the landing gear, we can provide FUWA ,Jost Brand with two Speed. It can be linkage.


"U" Shape tipper trailer 25 Cubic Meters can carry sand for small tons, but cannot carry big stones. If you

need to transport heavy goods, we can thicken sidewall and bottom plate for you; For square shape, we can

design 30-40 Cubic Meters. Our factory can provide you with customized services.



If you transport heavy goods, we also can recommend 4 Axles tipper semi trailer for you. 45 Cubic Meters

tipper semi trailer can carry 80 tons no problem . And to adapt to the rough road condition, we can design

thicken Mechanical Suspension for you.



                            REAR DUMP TRAILERS SPECIFICATIONS

  Model 3 axle 40m3 rear dump trailer
  Function Transport sand, stone, gravel
Dimension
  Overall Size (L×W×H)mm 9600×2550×3860mm
  Inner Size (L×W×H)mm 8300×2330×2000mm
  Wheel base 6870+1310+1310mm
Weight
  Payload 68,000kg
  Tare weight Approx12,000kg
  G.V.W.R. Approx 80,000kg
Body details
  Main beam Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.
  Body thickness 6mm
  Bottom thickness 8mm
  Hydraulic System Full set of HYVA Hydraulic System 202
Frame
  Axle heavy duty, 3×13Ton capacity, FUWA brand
  Suspension Leaf spring suspension, 90mm×16mm×10pcs
  Tire 12R22.5 12units Taitong Brand
  Kingpin 50mm/90mm removable
  Landing gear Yahua brand, 28ton, double speed, heavy duty
  Tool box 1pcs
  Spare wheel carrier 2pcs



Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 0

Flat Rack Container                                        Bulk Ship

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 1

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 2

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 3

Other Related Semi Trailers:

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 4

Rear Dump Trailers 3 4 Axle 35 40 Cubic Meter 5
