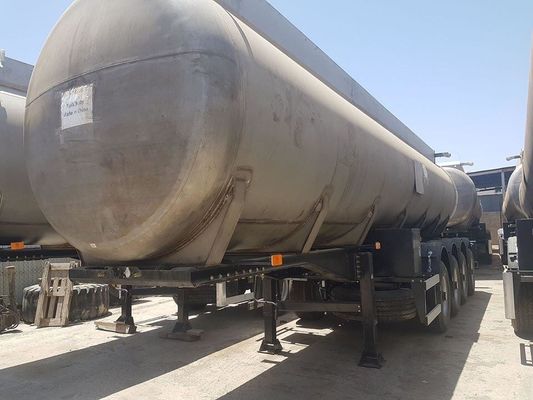

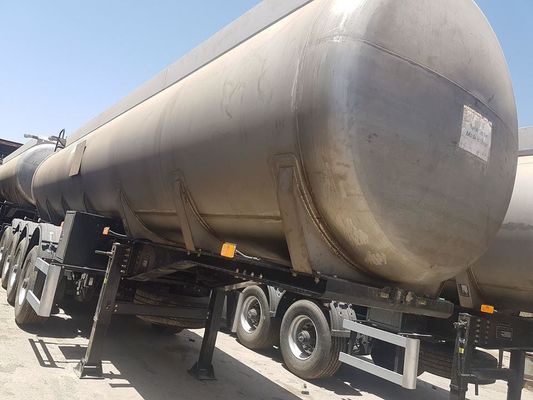

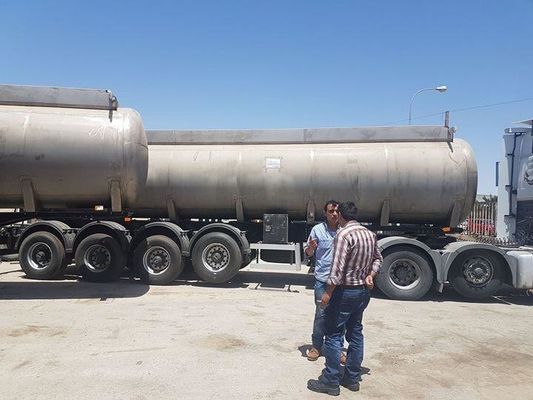

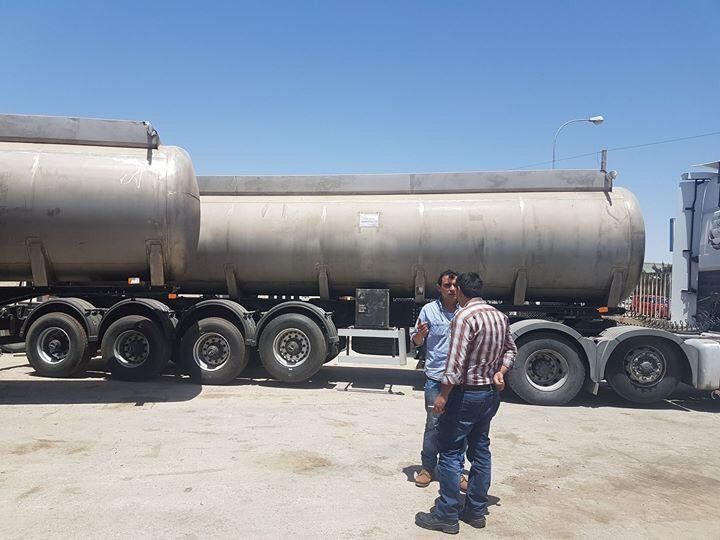

Stainless Steel Tanker Trailers 3 Axle 42000 Fuel Oil Tank Trailer
Fuel Tanker Semi Trailer Features:
Fuel tanker semi trailer is generally used to transport gasoline, kerosene, diesel, vegetable oil, edible oil,
heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid
substances. Trailer’s capacity is 30000-60000 liters, which is generally used for long-distance transportation.
Transport liquid substances to all over the world, so as to realize the reasonable distribution and use of resources.
1. 3D Drawing and HyperMesh & Ansys. Fully utilize physical property, support higher performance and
reduce operating cost.
2. ADR standard API Adaptor. Crucial to any API bottom loading system, match 3" or 4" couplers.
3. API Sockets Optic support bottom loading system.
4. ADR standard Manhole with vapor vent 16" or 20". Aluminum material for a longer lifetime.
5. More safety by 7% lower center gravity.
6. 12% larger volume by semi-elliptical section barrel design.
7. 10 year Long service life by tanker automatic arc welding.
FUEL TANKER SEMI TRAILER SPECIFICATIONS
| Dimension and Weight |
| Overall Dimension(mm) |
11500x2500x3900mm |
| Wheelbase |
7,500mm+1,310mm+1,310mm |
| Payload |
40,000kg |
| Tare weight |
10,000kg |
| G.V.W.R. |
50,000kg |
| Function |
transport Fuel, Oil, Diesel |
| Tank |
| Volume |
42000L |
| Thickness(mm) |
Material Stainless Steel |
| Tank body and separate compartment plate: 5mm |
| Dish end plate: 6mm |
| Welding standard |
All welding are to be done by qualified welder per applicable national standard |
| Compartment |
3 compartments ( 3*14000L ) |
| Manhole cover |
3 units Safety manhole with breath valve, Aluminum, diameter 500mm. |
| Discharge valve |
3units 3” API valve with dust cover, aluminum Henghe Brand |
| Bottom valve |
3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand |
| Discharge pipe |
3〞seamless steel tube, 6m |
| Tanker body test |
Hydrostatic test to 5 psi (35 Kpa) on each compartment |
| Running System |
| Axle |
14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance |
| Axle Number |
Three |
| Tire |
12R22.5, 12 pcs. Taitong brand |
| Rim |
9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs |
| Suspension system |
Mechanical Suspension |
| Steel Spring |
10/10/10 leaf spring with 90mm(W) *13mm(thickness) |
| Electrical System |
Chinese standard 24V lighting system |
| Brake system: |
Dual line pneumatic brake, SAE hose and connector,no ABS |
| Brake air chamber |
6 units T30/30 spring brake chambers |
| Emergency relay valve |
Wabco relay valve |
|
Our Fuel Tanker Semi Trialer Advantages:
1.Strong Steel structure
Steel frames are built with top-class hot rolled or rolled steel plate, automatically welded longitudinal beam
and adopting advanced sanding and painting process as preliminary treatment.
2.Polyurethane combination paint
The tanker is shot blasted with primer once and polyurethane combination paint twice. Strong resistance
and strong adhesion.
3.Rational analysis design
Adhere to the concept of even stress on the trailer frame. 42 sturdy rib design to ensure the safety and carrying
capacity of the trailer.
4.European System
Mature and reliable European system Explosion-proof manhole Anti-overflow Oil and gas recovery Bottom loading.
