60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer

Large Image : 60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316FTT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14000/unit-18000/unit
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer

Description

Product Name:	Fuel Tanker Semi Trailer	Size:	11500x2500x3900mm
Loading Capacity:	60000 Liters	Axle:	3x13ton
Brake System:	WABCO Valve	Tyre:	12R22.5
Highlight:	60000 Liter tri axle tanker trailer , 3x13 ton tri axle tanker trailer , 60000l oil tanker trailer

Tri Axle Semi Trailer Fuel Tanker Trailer 60000 Liter Oil Tank Trailer

Fuel Tanker Semi Trailer Description:

(1) Cutting
Cut steel to little parts by plasma cutting machine, which are used for suitable welding and splicing
(2) Welding
After steel cutting process, the next step is welding. The main work in this process is beam welding. The top
plate-bottom plate and the middle plate will be welding together., which will use submerged arc welding process.
This type of welding is very special, which exclusively used in I beam welding. After this welding process, other
parts of the trailer will be used different welding ways, like steel-argon arc welding, electric arc welding, manual
welding, gas welding and so on.
(3) Blasting
This process is the first step of surface cleanness, stress relief and derusting, which will be done before paiting.
(4) Electrophoresis coating
This process is used for detailed surface cleanness.
(5) Epoxy zinc primer spray coating
This process is the lasting one before paiting. The tanker will be painted after this process.
(6) Assembly
After all the process we have mentioned, the last procedure of the trailer is assembly. In this process all the parts
will be assembled, which include tire, wheel rim, king pin, landing gear, suspension, spring leaf, brake chamber,
air wiring, electricity wiring, brake system, etc.
(7) Packing
The last process is packing. Tanker trailers will use different packing ways as customer required.

FUEL TANKER SEMI TRAILER PARAMETERS

Dimension and Weight
Overall Dimension(mm)	11500x2500x3900mm
Wheelbase	7,500mm+1,310mm+1,310mm
Payload	40,000kg
Tare weight	10,000kg
G.V.W.R.	50,000kg
Function	transport Fuel, Oil, Diesel
Tank
Volume	600000L
Thickness(mm)	Material Q235 carbon steel
	Tank body and separate compartment plate: 5mm
	Dish end plate: 6mm
Welding standard	All welding are to be done by qualified welder per applicable national standard
Compartment	3 compartments ( 3*20000L )
Manhole cover	3 units Safety manhole with breath valve, Aluminum, diameter 500mm.
Discharge valve	3units 3” API valve with dust cover, aluminum Henghe Brand
Bottom valve	3 units 4 inch Pneumatic aluminum valve, 1pcs, Henghe Brand
Discharge pipe	3〞seamless steel tube, 6m
Tanker body test	Hydrostatic test to 5 psi (35 Kpa) on each compartment
Running System
Axle	14Ton, L1 brand optional FUWA brand, 3Axles, one hundred fifty thousand Kilometers no need maintenance
Axle Number	Three
Tire	12R22.5, 12 pcs. Taitong brand
Rim	9.0*22.5 steel disc wheel, 10 holes ISO, 12 pcs
Suspension system	Mechanical Suspension
Steel Spring	10/10/10 leaf spring with 90mm(W) *13mm(thickness)
Electrical System	Chinese standard 24V lighting system
Brake system:	Dual line pneumatic brake, SAE hose and connector,no ABS
Brake air chamber	6 units T30/30 spring brake chambers
Emergency relay valve	Wabco relay valve

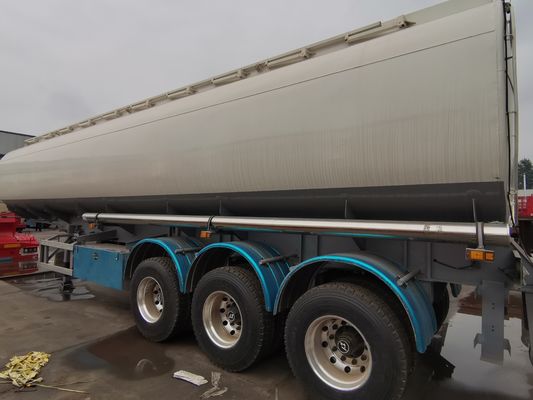

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer 0

Flat Rack Container

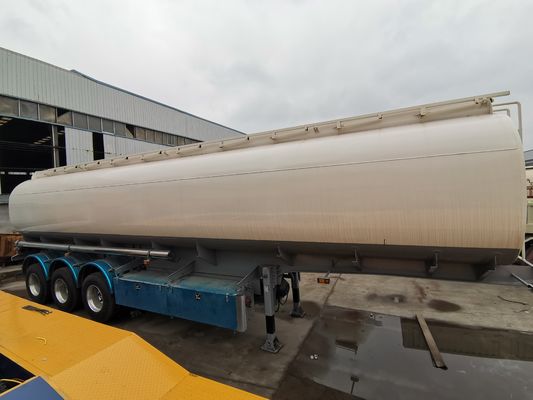

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer 1

Container

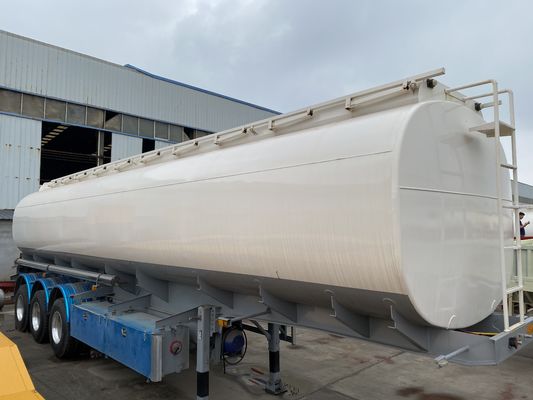

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer 2

Bulk Ship

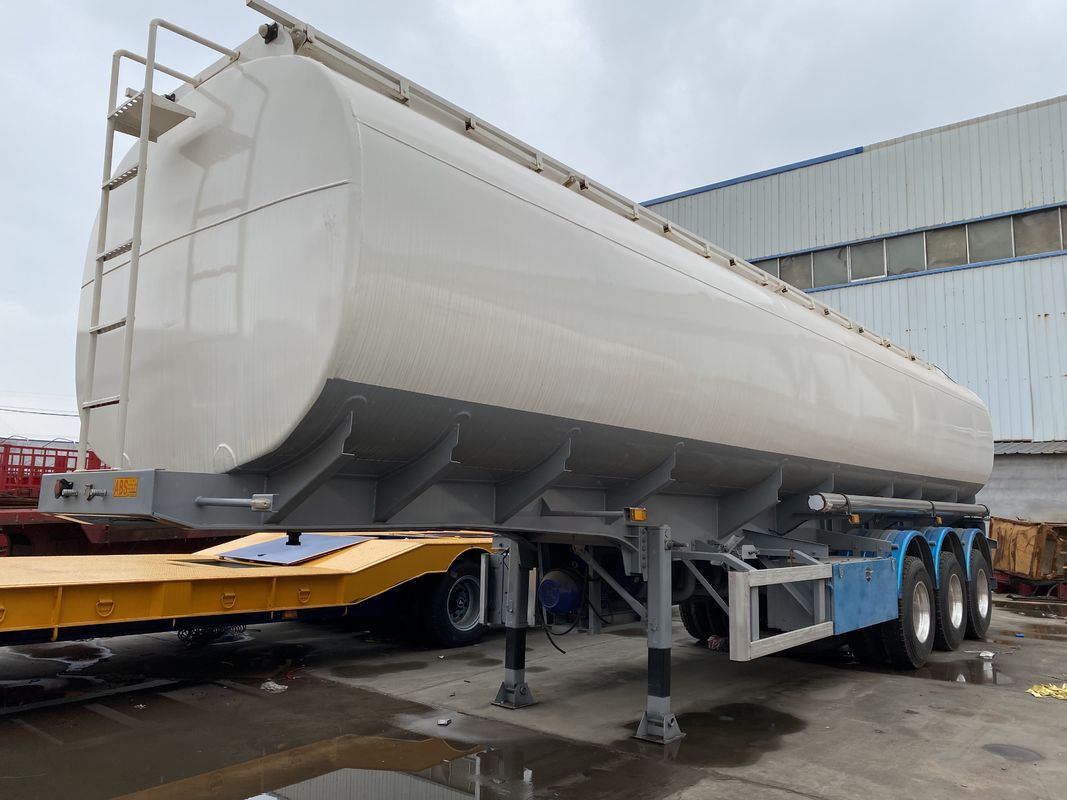

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer 3

Ro-Ro Ship

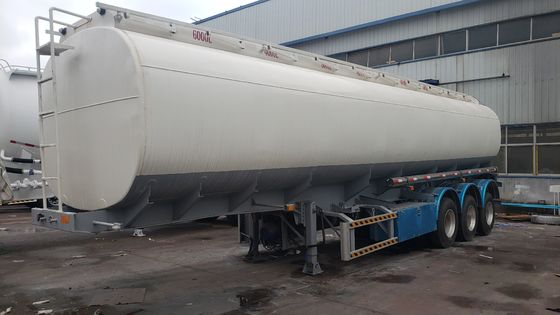

60000 Liter 3x13 Ton Tri Axle Tanker Trailer Oil Tank Trailer 4
