Heavy Duty 5 Axles Rear Dump Semi Trailer For Road Construction

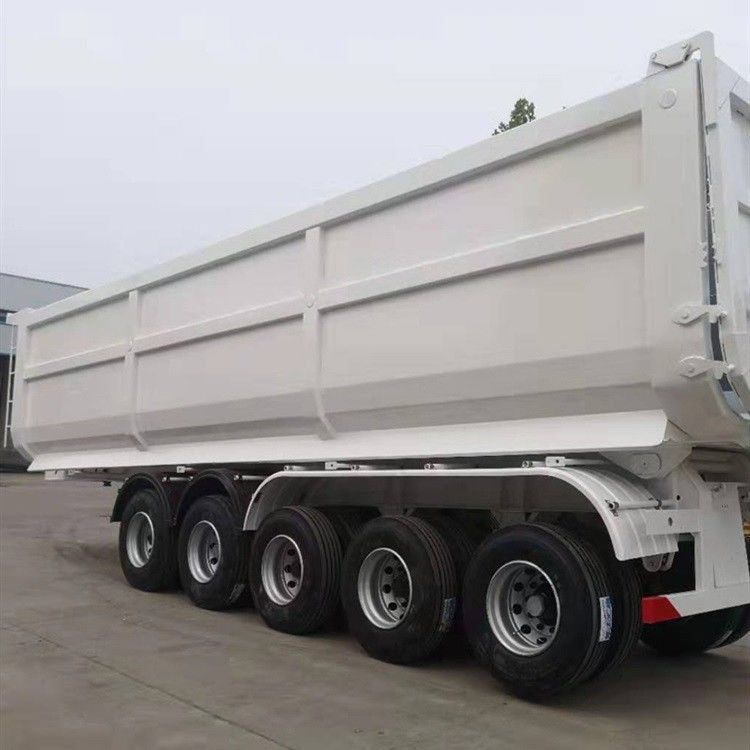

Large Image : Heavy Duty 5 Axles Rear Dump Semi Trailer For Road Construction

Product Details:

Place of Origin:	CHINA
Brand Name:	ALSTON
Certification:	CCC, ISO, CE
Model Number:	ATM3316DT

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$18000-$30000
Packaging Details:	Nude, Waxing before delivery
Delivery Time:	15-30 working days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	30 units per month

Contact Now

Heavy Duty 5 Axles Rear Dump Semi Trailer For Road Construction

Description

Product Name:	Dump Trailers	Type:	Truck Trailer
Axle:	5 Axles	King Pin:	2"(50mm)or3.5"(90mm) JOST
Dimension:	9600x2550x3860mm	Loading Capacity:	80ton
Highlight:	80t Rear Dump Semi Trailer , 5 axle Rear Dump Semi Trailer , CCC heavy duty tipper trailer

Ghana Heavy Duty 5 Axles Road Construction Rear Dump Semi Trailer

Rear Dump Trailers Features:

The rear dump trailers are suitable for the transportation of bulk goods such as coal, ore, and building materials.
The material of bucket is strong enough to meet the transport demands for all kinds of hard ones. It is in shape
of "U" and is designed as per requirements of national standard to improve the operation safety. It adopts the
shotblasting, phosphating, derusting processes and high polyester powder coating, which features high paint
adhesion, elegant, shining, and lasting performance.
Oil cylinder is very important part of dump trailer, our dump truck trailers use HYVA brand hydraulic cylinder,
which is the most famous brand of hydraulic cylinder, and spare parts are easier available in your local place.

REAR DUMP TRAILERS SPECIFICATIONS

	Model	5 axles 80ton Rear Dump Trailer
	Function	Transport sand, stone, gravel
Dimension
	Overall Size (L×W×H)mm	9600×2550×3860mm
	Inner Size (L×W×H)mm	8300×2330×2000mm
	Wheel base	6870+1310+1310mm
Weight
	Payload	80,000kg
	Tare weight	Approx12,000kg
	G.V.W.R.	Approx 92,000kg
Body details
	Main beam	Material Q345 carbon steel, upper plate 18mm, down plate 18mm, middle plate 8+8mm.
	Body thickness	6mm
	Bottom thickness	8mm
	Hydraulic System	Full set of HYVA Hydraulic System 202
Frame
	Axle	heavy duty, 5×13Ton capacity, FUWA brand
	Suspension	Leaf spring suspension, 90mm×16mm×10pcs
	Tire	12R22.5 20units Taitong Brand
	Kingpin	50mm/90mm removable
	Landing gear	Yahua brand, 28ton, double speed, heavy duty
	Tool box	1pcs
	Spare wheel carrier	2pcs

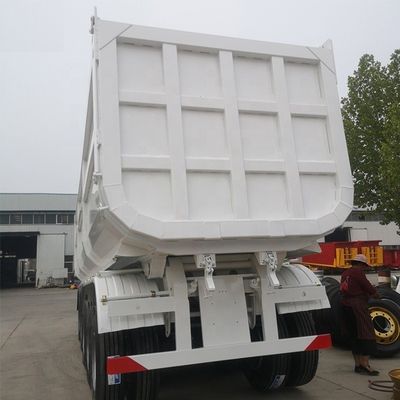

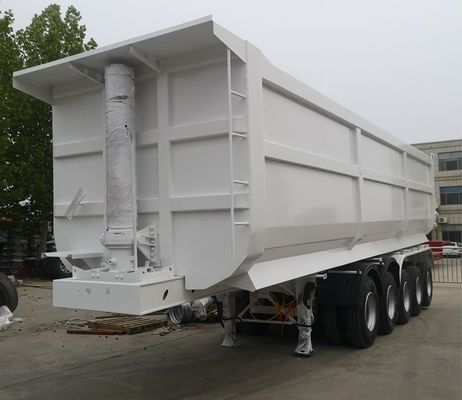

Heavy Duty 5 Axles Rear Dump Semi Trailer For Road Construction 0

Flat Rack Container Bulk Ship

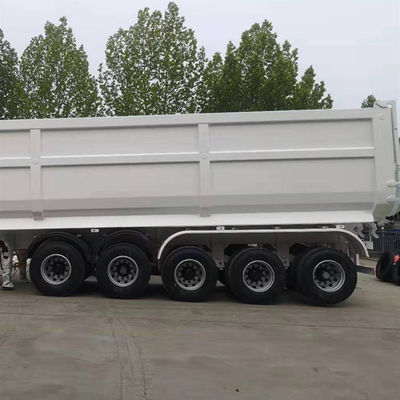

Heavy Duty 5 Axles Rear Dump Semi Trailer For Road Construction 1
